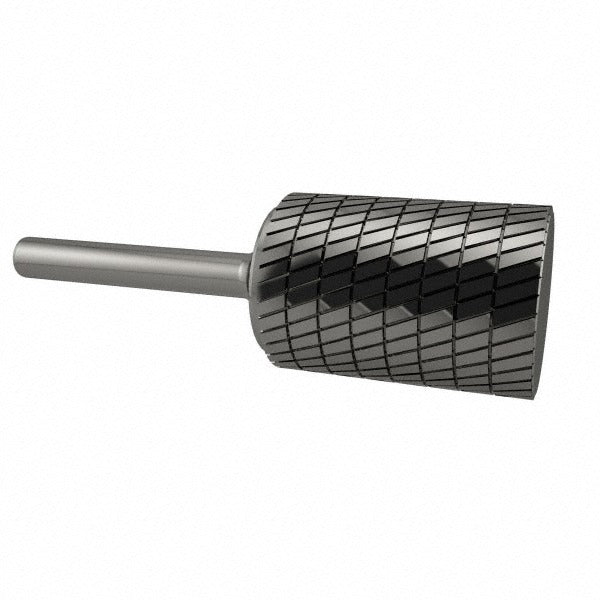

Sgs Pro 10203 SA-6 Cylinder Carbide Bur Double Cut

Product Description

The SGS PRO 10203 is a tungsten carbide abrasive bur with a cylinder head profile, conforming to industry specification SA-6. Built for aggressive material removal, this double-cut bur features a 5/8 inch cutting diameter and a 1/4 inch shank. Overall length is 2.75 inches, with a 1 inch length of cut. The uncoated tungsten carbide head delivers consistent performance across a broad range of ferrous and non-ferrous metals. Rated to 22,500 RPM, it handles both light deburring passes and heavier stock removal tasks without losing geometry. Machinists, fabricators, and tool-and-die technicians are the typical users of this bur in production and maintenance applications.

This bur is suited for grinding, deburring, shaping, and blending operations on metal workpieces. The double-cut tooth pattern produces a finer finish and lower vibration compared to single-cut geometry, making it a practical choice for work on harder alloys where surface quality matters. It fits standard die grinders and rotary tools with a 1/4 inch collet, making it easy to deploy on the bench or in the field.

Key Features

• SA-6 cylinder head profile for flat-bottom grinding and side-wall blending
• Double-cut tooth style for reduced chatter and smoother finish
• Tungsten carbide construction for long service life on hard materials
• 5/8 inch cutting diameter and 1 inch length of cut
• 1/4 inch shank fits standard die grinder collets
• Rated to 22,500 RPM for use with most pneumatic and electric rotary tools

Compatibility

Designed for use with die grinders and rotary tools equipped with a 1/4 inch collet. Compatible material applications include steel, hardened steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys.

Installation Notes

Installation is performed by machinists, fabricators, or maintenance technicians familiar with rotary cutting tools. Secure the 1/4 inch shank firmly in the collet before operation and confirm the tool RPM rating does not exceed the 22,500 RPM maximum. Always wear appropriate eye protection and secure the workpiece before engaging the bur. Inspect the bur for cracks or missing carbide before each use and remove from service if damage is found.
