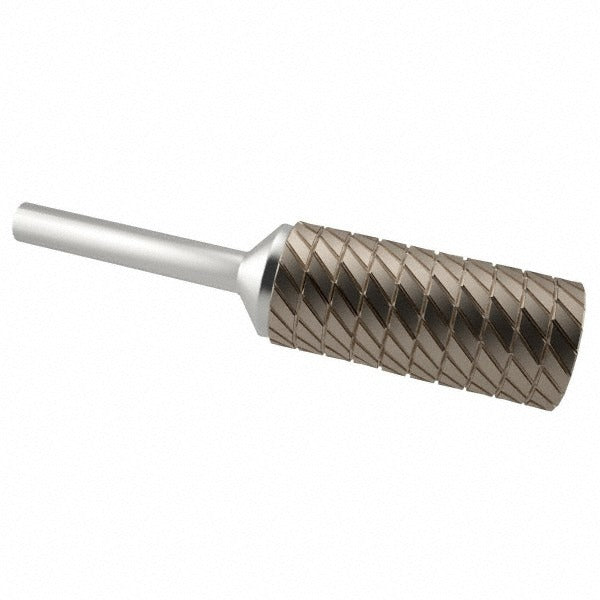

Sgs Pro 10153 Carbide Cylinder Bur SA-4 7/16 in Double Cut

Product Description

The SGS PRO 10153 is a double cut tungsten carbide rotary bur in the SA-4 cylinder profile, designed for aggressive material removal and finishing in die grinders and rotary tools with a 1/4 inch shank. The 7/16 inch cutting diameter and 1 inch length of cut make this bur well suited for slotting, contouring, and deburring operations in ferrous and non-ferrous metals. With an uncoated tungsten carbide head and a maximum rated speed of 28,000 RPM, this bur delivers consistent cutting performance under sustained shop use. Machinists, tool and die technicians, and fabricators are the primary users of this type of cutting tool.

This bur is rated for use on steel, hardened steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys. It is commonly used in metal fabrication shops, maintenance and repair operations, and production environments where precise material removal is required. The cylinder shape is particularly effective for flat-bottom grooving, side cutting, and working in confined bores or pockets where a straight cutting profile is needed.

Key Features

• SA-4 industry specification cylinder profile for flat-bottom and side-wall cutting
• Double cut tooth style for fast stock removal and smoother finish compared to single cut
• Tungsten carbide head construction for extended tool life on hard and abrasive materials
• Rated to 28,000 RPM for use with standard die grinders and rotary tools
• 1/4 inch shank fits the most common collet size in pneumatic and electric die grinders
• Uncoated head allows direct visual inspection of edge condition during use

Compatibility

Designed for use in die grinders and rotary tools accepting a 1/4 inch shank collet. Compatible with applications involving steel, hardened steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys per SA-4 industry specification.

Installation Notes

Install this bur into a 1/4 inch collet and tighten securely before operation. Always wear appropriate eye protection and secure the workpiece before engaging the tool. Do not exceed the 28,000 RPM maximum rated speed. Inspect the bur for chipping or wear before each use and replace if cutting edges are damaged.
