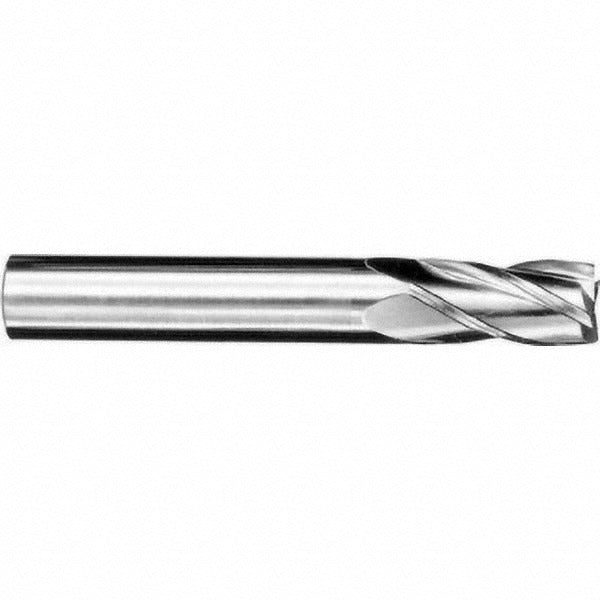

Sgs 48510 Square End Mill 0.2756 in 4 Flute Solid Carbide

Product Description

The SGS 48510 is a solid carbide square end mill designed for precision material removal in CNC and manual milling operations. Built from micrograin carbide and finished with a Titanium Nitride (TiN) coating, it delivers extended tool life across a range of workpiece materials. The cutter measures 0.2756 inches in diameter with a 0.748-inch length of cut and a 0.315-inch straight-cylindrical shank. A 30-degree helix angle and four right-hand spiral flutes promote efficient chip evacuation and smooth cutting action. This is a center-cutting, single-end tool suited for slotting, profiling, and plunge operations in standard-length reach applications.

The SGS 48510 is rated for use across multiple material categories including cast iron, non-ferrous metals, stainless steel, heat-resistant alloys, and general steels, corresponding to ISO material groups H, K, M, N, P, and S. It is appropriate for job shop and production environments where consistent dimensional accuracy is required. Licensed machinists and CNC operators working in aerospace, general manufacturing, and tool-and-die applications will find this tool suitable for their standard milling needs.

Key Features

• Micrograin solid carbide construction for rigidity and wear resistance
• Titanium Nitride (TiN) coating extends tool life and reduces friction
• 30-degree helix angle promotes chip flow and surface finish quality
• Four right-hand spiral flutes with right-hand cut orientation
• Center-cutting geometry allows direct plunge entry into workpiece
• Straight-cylindrical shank fits standard collet and end mill holders

Compatibility

Designed as a standard-shank square end mill compatible with collet chucks, end mill holders, and milling machine spindles accepting a 0.315-inch straight-cylindrical shank.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and the tool holder is clean and free of debris before seating the shank. Confirm runout with a dial indicator after tool installation to verify concentricity before beginning a cut. Follow machine tool manufacturer torque specifications for set screws or collet nuts.
