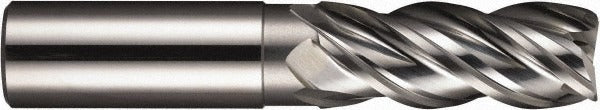

Sgs 46859 Corner Radius End Mill 10mm 4-flute Carbide

Product Description

The SGS 46859 is a solid carbide corner radius end mill designed for demanding material removal in steel, stainless steel, cast iron, superalloys, and titanium. It carries a 10 mm cutting diameter, a 1 mm corner radius, and a 10 mm length of cut, with a 72 mm overall length and a 10 mm straight-cylindrical shank. The four-flute, variable-helix geometry supports both roughing and finishing operations in a single tool. A TiN coating adds surface hardness and wear resistance. This tool is part of the SGS Z-Carb-AP ZPMC series and is built from micrograin carbide for edge retention at elevated cutting loads.

The SGS 46859 is suited for machining operations on CNC vertical and horizontal machining centers using end mill holders. Its single-end, right-hand cutting geometry handles contour milling, slotting, and profiling in ferrous and hard materials. The corner radius reduces stress concentration at the cutting edge, extending tool life in interrupted cuts and aggressive feed applications. It is appropriate for job shops and production environments working with medium to hard workpiece materials, including superalloys and titanium where edge integrity is critical.

Key Features

• 10 mm cutting diameter with 1 mm corner radius for reduced edge chipping
• Variable helix and variable index geometry for vibration damping and improved surface finish
• Four flutes in solid micrograin carbide for rigidity and edge retention
• TiN coating for wear resistance across steel, stainless steel, cast iron, superalloys, and titanium
• Right-hand flute direction with centercutting geometry for versatile entry options
• 10 mm straight-cylindrical shank with h6 tolerance for secure holder fit

Compatibility

Designed for use with standard end mill holders. Suitable for CNC machining applications in steel, stainless steel, cast iron, superalloys, titanium, and hard materials as identified by material codes P, M, K, S, and H.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Power down and lock out the machine spindle before seating or removing the tool from the holder. Verify holder bore diameter and runout before use, as shank diameter tolerance is h6. Do not exceed the rated length of cut depth to avoid deflection or tool breakage.
