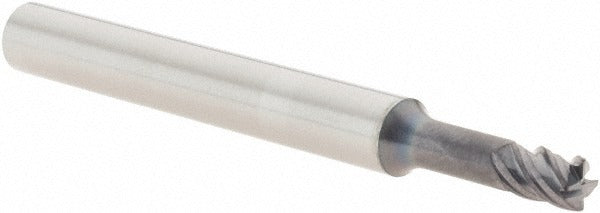

Sgs 46561 Corner Radius End Mill 4mm 4 Flute Carbide

Product Description

The SGS 46561 is a solid carbide corner radius end mill designed for high-performance material removal in demanding machining applications. Built to the ZD1M series specification, it features a 4 mm cutting diameter, a 0.3 mm corner radius, and four helical flutes with a variable helix and variable index geometry. The AlTiN (TX) coating improves heat resistance and extends tool life in abrasive materials. At 57 mm overall length with a 6 mm straight-cylindrical shank, this single-end, extended-reach tool is suited for both roughing and finishing passes in production CNC milling environments.

This end mill is rated for cutting cast iron and hard materials as primary workpiece materials, with steel as a secondary application. The short-length flute configuration at 5 mm length of cut combined with a 14.99 mm reach length and 3.61 mm neck diameter allows access to stepped or recessed features while maintaining rigidity. It is intended for use with standard end mill holders and is well suited for horizontal and vertical machining center operations where tight tolerances on corner geometry are required.

Key Features

• 4 mm cutting diameter with 0.3 mm corner radius for controlled edge blending
• Variable helix and variable index geometry reduces chatter and harmonics
• AlTiN (TX) coating for elevated heat and wear resistance in hard and abrasive materials
• Micrograin solid carbide substrate for rigidity and edge retention
• Extended reach with 14.99 mm reach length and 3.61 mm neck diameter for recessed feature access
• Centercutting capable design supports direct plunge and ramping entries

Compatibility

Designed for use with standard end mill holders. Primary workpiece materials are cast iron and hard materials (material codes K and H); secondary workpiece material is steel (material code P). Series ZD1M.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Secure the 6 mm shank in a properly sized end mill holder and verify runout before cutting. Ensure the machine spindle is fully stopped and locked out before inserting or removing the tool. Follow the machine tool manufacturer guidelines and applicable shop safety procedures when setting feeds, speeds, and depth of cut for the target workpiece material.
