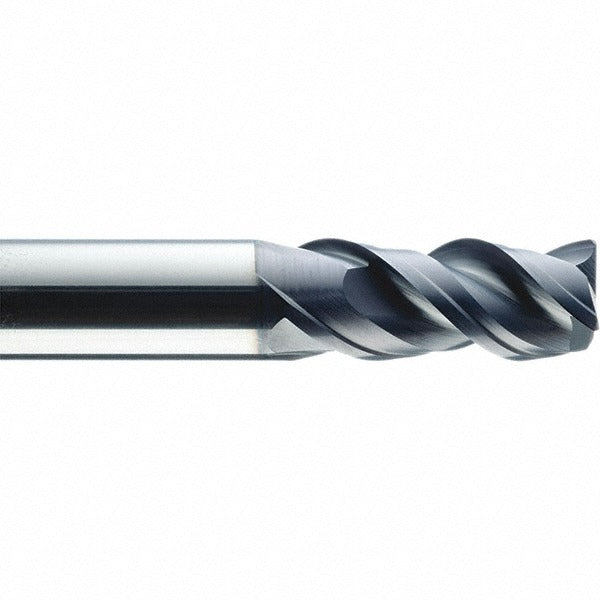

Sgs 43491 Corner Radius End Mill 16mm 3 Flute Carbide

Product Description

The SGS 43491 is a solid carbide corner radius end mill designed for high-performance material removal in demanding machining applications. Built to Series 33MC standards, it features a 16 mm cutting diameter, a 38 mm length of cut, and a 2.50 mm (0.0984 inch) corner radius. The AlTiN coating under the proprietary Ti-NAMITE-A designation provides heat and wear resistance suited for aggressive cutting cycles. Three helical flutes with a variable index and variable helix geometry reduce harmonic vibration and chatter during roughing passes. The single-end configuration and straight-cylindrical shank seat directly into standard end mill holders.

This end mill is configured for roughing operations on steel, stainless steel, cast iron, superalloys, and titanium, as well as hard materials. The coarse pitch and right-hand flute direction make it appropriate for high metal-removal-rate roughing in both horizontal and vertical machining centers. It is a non-centercutting, single-end tool, so plunge entry is not recommended without a pre-drilled starting hole. Machinists and CNC operators in production shops, tool rooms, and job shops running ferrous and exotic alloy workpieces are the primary users.

Key Features

• Variable index and variable helix geometry reduce chatter and vibration during roughing cuts
• AlTiN coating (Ti-NAMITE-A) provides elevated heat resistance for dry or minimal-lubrication machining
• Solid carbide construction delivers rigidity and tool life in hard and abrasive materials
• 2.50 mm corner radius extends edge life and reduces stress concentration at the cutting corner
• Right-hand cut and right-hand flute direction compatible with standard spindle rotation
• Straight-cylindrical shank with h6 tolerance fits standard end mill holders without modification

Compatibility

Designed for use with end mill holders. Suitable for machining steel, stainless steel, cast iron, superalloys, titanium, and hard materials. Not designed for centercutting or plunge entry.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and locked out before mounting or removing the tool. Seat the shank fully into the end mill holder and torque the set screw or collet to the holder manufacturer's specification. Confirm runout with a dial indicator before initiating a cut, particularly for variable-helix tools where balance is geometry-dependent.
