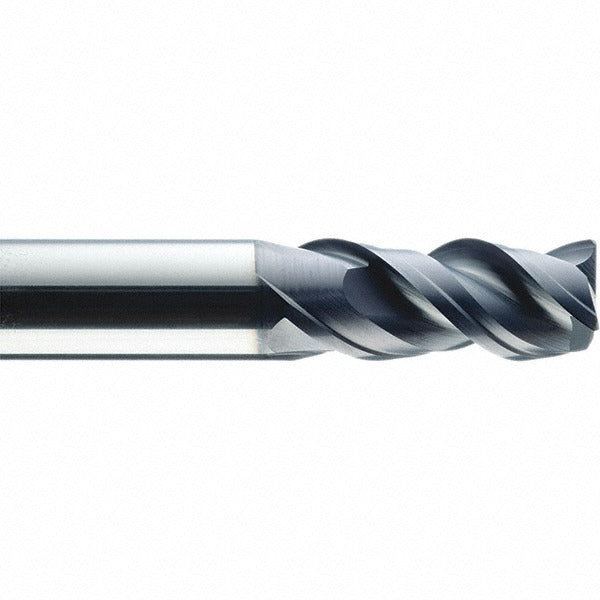

Sgs 43474 Corner Radius End Mill 6mm 3 Flute Carbide

Product Description

The SGS 43474 is a solid carbide corner radius end mill designed for aggressive material removal in demanding machining applications. Part of the Series 33MC, it features a 6 mm cutting diameter, an 18 mm length of cut, and a 1.50 mm (0.0591 inch) corner radius. The AlTiN coating, designated Ti-NAMITE-A by SGS, provides heat and wear resistance for high-speed cutting in difficult workpiece materials. With three flutes, a variable helix, and a variable index geometry, the tool is engineered for roughing operations where chatter control and chip evacuation are critical. The overall length is 57 mm and the shank diameter is 6 mm. End mill holders are the recommended toolholding system.

This end mill is suited for roughing operations on steel, stainless steel, cast iron, superalloys, titanium, and hard materials. The long-length configuration and coarse pitch flute geometry support heavy chip loads in setups where standard-length tools lack the reach. The single-end design with a right-hand cut and right-hand flute direction makes it compatible with standard CNC machining center spindles. It is commonly used in job shops, tool rooms, and production environments running multi-axis mills and machining centers.

Key Features

• 6 mm cutting diameter with a 1.50 mm corner radius for blend and edge protection in roughed pockets
• AlTiN (Ti-NAMITE-A) coating rated for steel, stainless steel, cast iron, superalloys, titanium, and hard materials
• Variable helix and variable index geometry reduce harmonic vibration during roughing passes
• Three-flute, coarse-pitch design promotes chip clearance in deep cuts
• Long-length flute configuration - 18 mm LOC on a 57 mm OAL tool - extends reach into deep pockets
• Straight-cylindrical shank with h6 tolerance for secure seating in end mill holders

Compatibility

Designed for use with end mill holders. Suitable for CNC machining centers running right-hand spindle rotation. Primary workpiece materials include steel, stainless steel, cast iron, superalloys, and titanium; secondary workpiece material compatibility includes hard materials.

Installation Notes

This tool is installed by machinists or CNC setup technicians using standard end mill holders. Confirm the holder bore matches the 6 mm shank diameter before mounting. Torque the retention mechanism to the holder manufacturer specification and verify runout with a dial indicator before beginning a cut. Do not use in applications requiring centercutting entry, as this tool is not centercutting.
