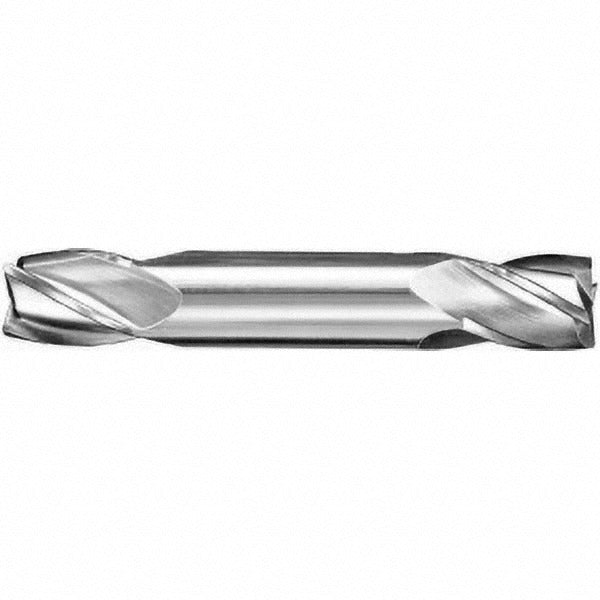

Sgs 39601 Square End Mill 0.0313 in 4 Flute Solid Carbide

Product Description

The SGS 39601 is a stub-length square end mill designed for precision material removal in CNC and manual milling operations. Built from micrograin solid carbide with a TiCN coating, it carries a 0.0313 inch cutting diameter, a 0.0625 inch length of cut, and a 1.5 inch overall length. The 0.125 inch straight-cylindrical shank fits standard collets and tool holders. Four spiral flutes with a 30-degree helix angle promote efficient chip evacuation and surface finish. This tool is intended for use by machinists, tool-and-die makers, and CNC operators working in close-tolerance applications.

The SGS 39601 is suited for slotting, profiling, and plunge operations in small-feature work where a stub-length geometry improves rigidity and reduces deflection. The TiCN coating extends tool life in abrasive and moderately hard materials. Its centercutting capability allows direct plunge entry without a pre-drilled hole. The tool handles a broad range of workpiece materials, including cast iron, non-ferrous metals, stainless steel, high-temperature alloys, and general steels, corresponding to material codes H, K, M, N, P, and S.

Key Features

• Micrograin solid carbide construction for wear resistance and dimensional stability
• TiCN coating for extended tool life in abrasive workpiece materials
• 4 right-hand spiral flutes at 30-degree helix for efficient chip flow
• Centercutting geometry allows direct plunge milling
• Stub-length design maximizes rigidity and minimizes deflection on small-diameter cuts
• Right-hand cut and right-hand flute direction for standard spindle rotation

Compatibility

Designed for use in standard 0.125 inch collets and straight-bore tool holders. Compatible with workpiece material codes H, K, M, N, P, and S as designated in the supplier specification. Part of SGS Series 14.

Installation Notes

Installation and tool changes must be performed with the machine spindle at a full stop and all power isolated. Secure the 0.125 inch straight shank in a properly sized collet or end mill holder, torquing to the machine tool manufacturer specifications. Verify runout before cutting, as small-diameter carbide end mills are sensitive to excessive TIR. Follow applicable shop safety practices and machine guarding requirements during setup and operation.
