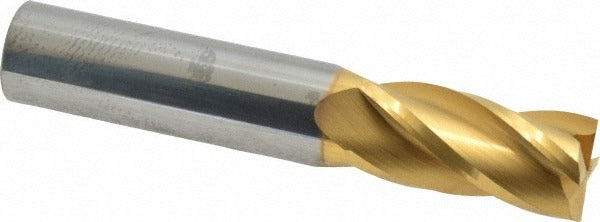

Sgs 39167 Square End Mill 5/8 in 4 Flute Solid Carbide Tin

Product Description

The SGS 39167 is a solid carbide square end mill designed for high-precision milling operations across a broad range of workpiece materials. Built from micrograin carbide and finished with a titanium nitride (TiN) coating, this 4-flute tool delivers consistent cutting performance in demanding shop environments. The 5/8 inch cutting diameter pairs with a 1-1/4 inch length of cut and a 3-1/2 inch overall length. The 30-degree helix angle promotes smooth chip evacuation, while the variable index geometry reduces harmonic vibration during cutting. Centercutting capability allows direct plunge entry without a pre-drilled pilot hole. This tool is installed and operated by machinists and CNC programmers in job shop and production environments.

This end mill is suited for milling operations on a wide range of materials including cast iron, non-ferrous metals, stainless steel, heat-resistant superalloys, titanium, and steel. The Series 1 regular-length geometry fits standard tool holders and is appropriate for face milling, shoulder milling, slotting, and peripheral milling applications in both manual and CNC machining centers. The right-hand cut and right-hand spiral flute configuration is the standard orientation for conventional spindle rotation.

Key Features

• Micrograin solid carbide construction for rigidity and wear resistance
• TiN finish extends tool life in moderate-temperature cutting applications
• 4-flute spiral design with variable index for reduced chatter
• 30-degree helix angle promotes efficient chip flow
• Centercutting geometry allows direct plunge milling
• Right-hand cut and right-hand flute for standard spindle use

Compatibility

Designed as an OEM-style solid carbide square end mill for use in standard straight-bore tool holders accepting a 5/8 inch shank diameter.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer guidelines. Ensure the spindle is fully stopped and the machine is in a safe state before tool changes. Seat the 5/8 inch straight-cylindrical shank fully in a collet or end mill holder and torque the retention mechanism to the tool holder specification. Verify runout with a dial indicator before beginning a production cut.
