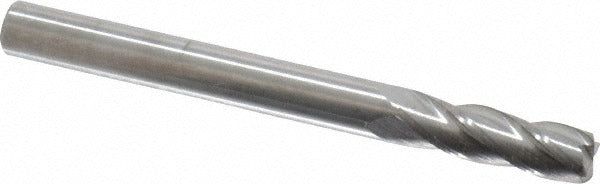

Sgs 38013 Corner Radius End Mill 3/16 in 4 Flute Carbide

Product Description

The SGS 38013 is a solid carbide corner radius end mill designed for precise milling operations across a wide range of metallic workpiece materials. It features a 3/16 inch diameter, a 0.03 inch corner radius, and four helical flutes arranged in a right-hand cutting direction with a medium helix angle. The 5/8 inch length of cut and 2 inch overall length make it suited for long-reach slotting, profiling, and finishing passes. The bright, uncoated finish is appropriate for applications where coating interaction with the workpiece material must be avoided. Machinists and tool-and-die professionals install this end mill in standard end mill holders on CNC machining centers or manual mills.

This end mill is rated for use on steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. The micrograin carbide substrate provides the hardness and wear resistance needed for both roughing and finishing cuts in these demanding material categories. The straight-cylindrical shank with a 3/16 inch diameter and h6 shank tolerance ensures consistent runout and a secure hold in end mill holders. It is a single-end, centercutting-capable geometry suitable for plunge entries and full-slot milling where corner edge integrity is critical.

Key Features

• 0.03 inch corner radius protects edge integrity and reduces stress concentration at corners
• Micrograin solid carbide substrate rated for steel, stainless, cast iron, non-ferrous, superalloys, titanium, and hard materials
• Four right-hand helical flutes with normal pitch for chip evacuation in both roughing and finishing passes
• Bright uncoated finish suitable for applications requiring no coating interaction
• Straight-cylindrical shank with h6 tolerance for low runout in end mill holders
• Long flute length type with 5/8 inch length of cut for extended reach applications

Compatibility

Designed for use with standard end mill holders. Suitable for CNC machining centers and manual milling machines accepting a 3/16 inch straight-cylindrical shank.

Installation Notes

Installation should be performed by a qualified machinist familiar with cutting tool setup procedures. Power down and lock out the spindle before seating or removing the tool from the holder. Verify shank seating depth and runout with a dial indicator before cutting. Do not exceed the tool manufacturer's recommended speeds and feeds for the workpiece material being machined.
