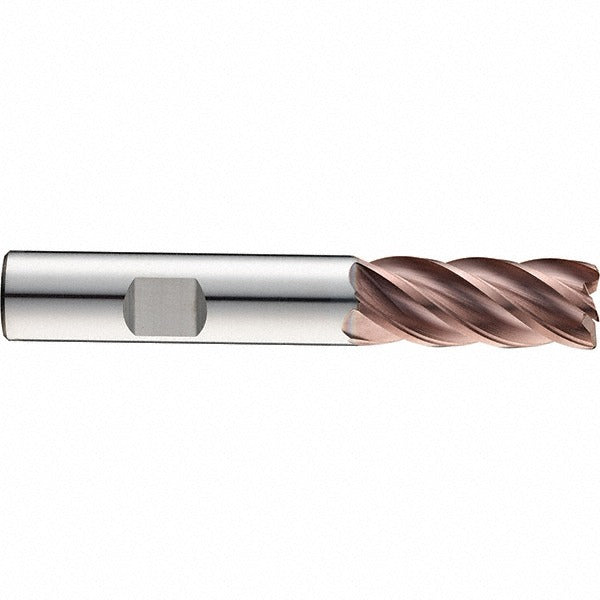

Sgs 37175 Corner Radius End Mill 5 Flute Solid Carbide

Product Description

The SGS 37175 is a solid carbide corner radius end mill designed for high-performance material removal in demanding machining applications. It features a 3/8 inch mill diameter, a 0.03 inch corner radius, and 5 helical flutes with a high-helix configuration. The TiN coating increases surface hardness and reduces tool wear during extended cutting cycles. With a short-length-of-cut geometry and a Weldon flat shank, this end mill is well-suited for use in end mill holders on CNC machining centers and manual mills. It handles both roughing and finishing operations in a single tool, making it a practical choice for shops running tight tolerances on hard materials.

The SGS 37175 is intended for cutting steel, stainless steel, cast iron, superalloys, and titanium, as well as secondary hard material applications. The 5-flute, right-hand cutting and right-hand flute direction configuration supports higher feed rates compared to standard 4-flute designs. The 3/8 inch shank diameter and 2.5 inch overall length make this tool a fit for standard short-reach setups in vertical and horizontal machining centers. It is a single-end tool used in production and job-shop environments where consistent corner geometry is required.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard and abrasive materials
• 0.03 inch corner radius reduces stress concentration at the cutting edge and extends tool life
• 5-flute, high-helix design supports higher feed rates and improved chip evacuation
• TiN coating adds surface hardness and thermal resistance during roughing and finishing cuts
• Variable index flute spacing reduces harmonic chatter during aggressive cuts
• Weldon flat shank provides positive engagement in end mill holders, preventing pullout

Compatibility

Designed for use with end mill holders. Suitable for machining steel, stainless steel, cast iron, superalloys, titanium, and hard materials. Part of the SGS Z5C series.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Secure the Weldon flat shank firmly in a compatible end mill holder and verify runout before beginning a cut. Power down and de-energize the machine spindle before changing tooling. Do not exceed the tool manufacturer's recommended speeds and feeds for the workpiece material and depth of cut.
