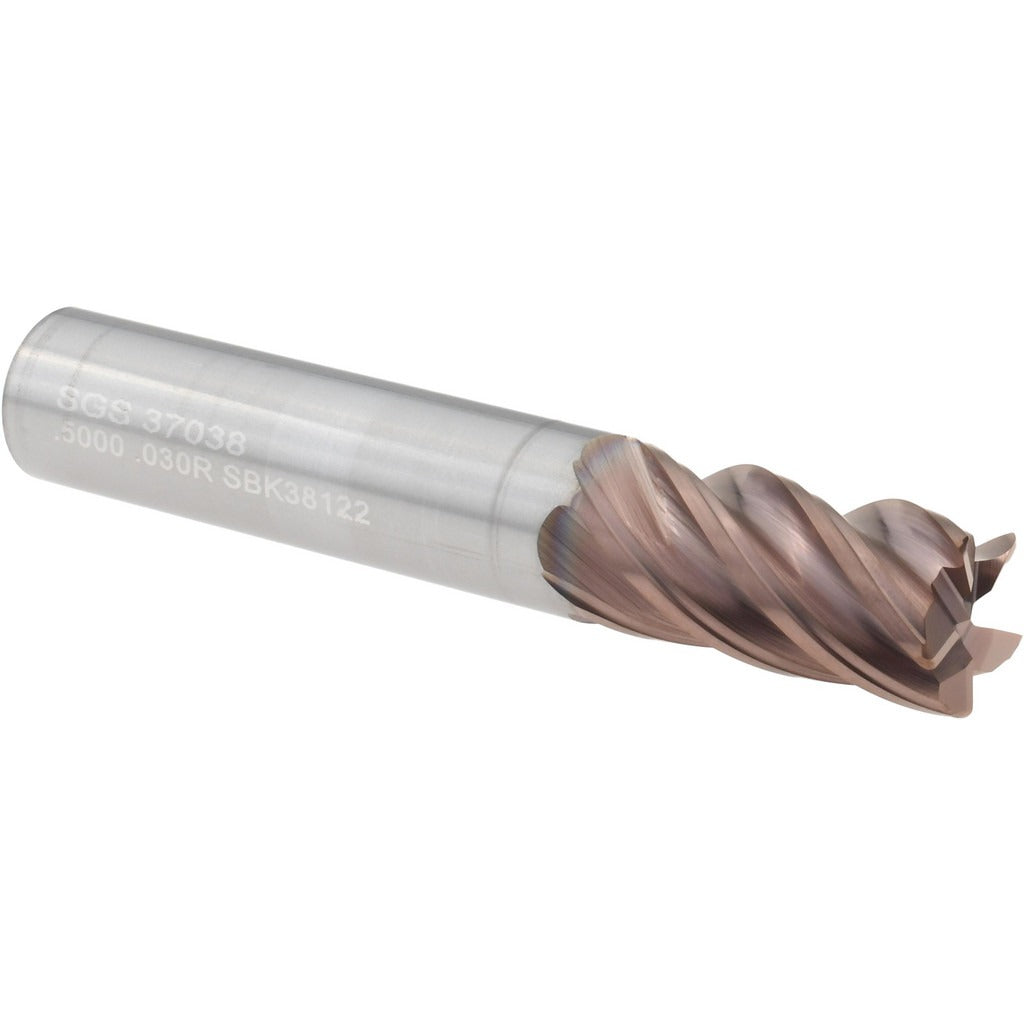

Sgs 37038 Roughing End Mill 1/2 in 5 Flute Solid Carbide Tin

Product Description

The SGS 37038 is a solid carbide roughing end mill designed for aggressive material removal in milling operations. It features a 1/2 inch diameter, five variable-pitch flutes, and a 0.03 inch corner radius that helps reduce chipping and extend tool life during heavy roughing passes. A TiN coating adds surface hardness and lubricity, improving performance in ferrous and non-ferrous materials. The single-end, right-hand cutting geometry with right-hand spiral flutes suits a wide range of CNC and manual milling setups. This tool is installed and used by machinists and toolroom professionals working in production and job shop environments.

The SGS 37038 is suited for roughing operations in vertical and horizontal machining centers as well as manual knee mills. With a 1 inch length of cut and 3 inch overall length, it fits standard toolholding systems using a 1/2 inch straight-cylindrical shank. The variable pitch reduces harmonic chatter during high-feed roughing cuts, making it appropriate for steels, stainless, and similar materials where vibration control is critical. It is not center-cutting and should not be used for plunge entry without a pre-drilled hole or ramping strategy.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding roughing applications
• TiN coating improves surface hardness and reduces built-up edge on ferrous materials
• Variable pitch flute spacing reduces chatter and vibration during aggressive cuts
• 0.03 inch corner radius reduces stress concentration and corner chipping
• Coolant-through capability supports high-pressure coolant delivery for chip evacuation and heat management
• Right-hand cut, right-hand spiral, single-end configuration for standard milling setups

Compatibility

Designed for use in CNC machining centers and manual mills accepting a 1/2 inch straight-cylindrical shank with h6 shank diameter tolerance. Part of the SGS Z5CR series of variable-pitch roughing end mills.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Secure the shank fully within the toolholder to the recommended gauge length and verify runout before production use. This tool is not center-cutting — do not attempt straight plunge entry; use ramping or helical interpolation instead. Follow machine manufacturer torque specifications for the toolholder being used.
