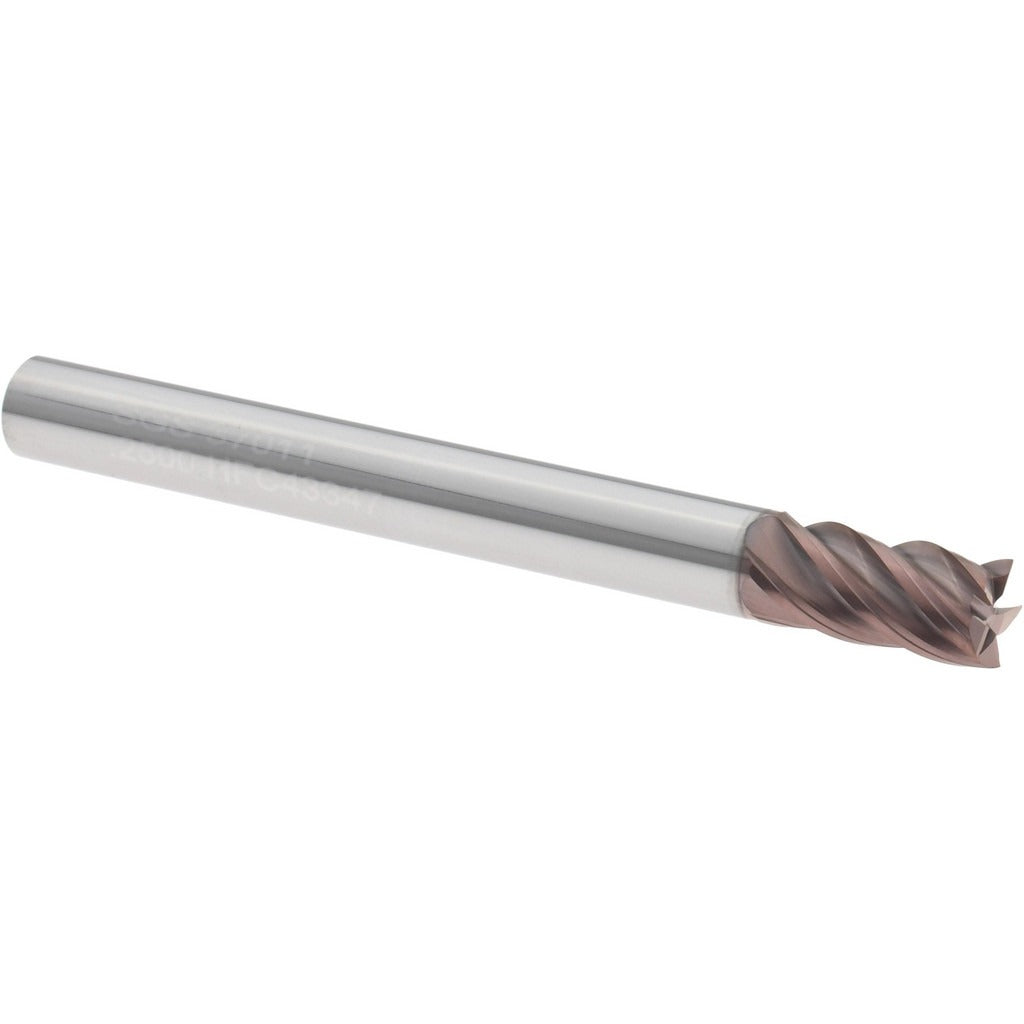

Sgs 37011 Roughing End Mill 1/4 in 5 Flute Solid Carbide Tin

Product Description

The SGS 37011 is a single-end roughing end mill designed for aggressive material removal in milling operations. Built from micrograin solid carbide with a TiN coating, this tool delivers the hardness and edge retention needed for production machining environments. It features a 1/4 inch diameter, 5 flutes, a variable index geometry, and a maximum helix angle of 37 degrees. The 1/2 inch length of cut and 2-1/2 inch overall length make it well suited for standard-depth slotting and peripheral roughing passes. Coolant-through capability supports chip evacuation and thermal control during high-feed cuts.

This end mill is intended for use in CNC machining centers and manual mills where roughing passes precede finishing operations. The variable index flute spacing reduces harmonic chatter, which is especially useful when working with tougher alloys or in setups with moderate workholding rigidity. The straight cylindrical shank with h6 tolerance fits standard collet chucks and end mill holders. It is a right-hand cut, right-hand flute tool and is not center cutting, so plunge entry is not recommended. Machinists, toolroom operators, and job shop technicians are the primary users.

Key Features

• Micrograin solid carbide construction for hardness and wear resistance
• TiN coating extends tool life and reduces friction at the cutting edge
• Variable index flute spacing reduces vibration and chatter during roughing
• Coolant-through design supports chip evacuation and heat management
• 5 flutes with right-hand cut and right-hand spiral for efficient chip flow
• h6 shank tolerance for precise fit in collet chucks and end mill holders

Compatibility

Designed as an OEM-style roughing end mill for use in standard CNC machining centers and manual milling machines accepting a 1/4 inch straight cylindrical shank.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and the tool holder is clean and free of debris before seating the end mill. Tighten the collet or holder to the torque specification listed by the holder manufacturer. Because this tool is not center cutting, avoid direct plunge entry into solid material.
