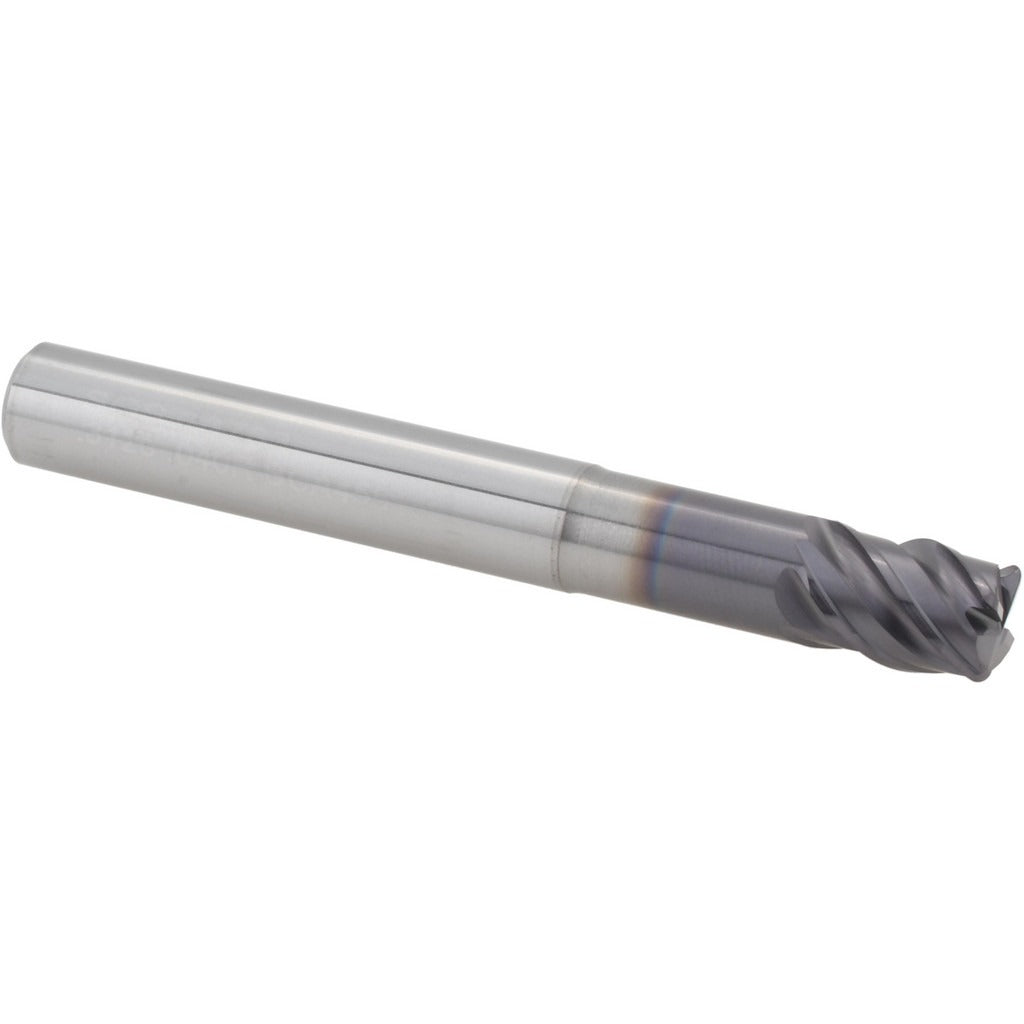

Sgs 36783 Corner Radius End Mill 5/16in 4 Flute Carbide

Product Description

The SGS 36783 is a solid carbide corner radius end mill designed for high-performance material removal in demanding machining applications. Built on the ZD1C series platform, it features a 5/16 inch (0.3125 inch) mill diameter with a 0.0400 inch corner radius and a 13/32 inch (0.4063 inch) length of cut. The TX coating provides enhanced surface hardness and heat resistance, supporting both roughing and finishing operations in a single tool. With four flutes, variable helix, and variable index geometry, the 36783 delivers reduced chatter and improved chip evacuation. It is installed and operated by machinists and CNC tooling specialists working in precision manufacturing environments.

The SGS 36783 is suited for cutting cast iron, hard materials, and steel. Its extended reach design, with a 1.0100 inch reach length and 0.2970 inch neck diameter, makes it well-suited for accessing deeper features and pockets where standard-length tools cannot reach. The straight-cylindrical shank fits standard end mill toolholders. Right-hand cutting and right-hand flute direction are standard on this tool. It is not center-cutting and does not support coolant-through delivery.

Key Features

• 0.0400 inch corner radius with tolerance of +0.00000 to -0.00200 inch for consistent edge geometry
• TX coating for improved wear resistance across cast iron, hard materials, and steel
• Variable helix and variable index geometry reduce vibration and improve surface finish
• Extended reach with 1.0100 inch reach length and 0.2970 inch neck diameter
• Handles both roughing and finishing operations in a single pass
• Short-length flute type with spiral flutes for efficient chip removal

Compatibility

Designed for use with standard end mill toolholders. Primary workpiece materials are cast iron and hard materials; secondary workpiece material is steel. Part of the SGS ZD1C series.

Installation Notes

Installation is performed by machinists using compatible end mill toolholders in CNC or manual milling machines. Verify toolholder runout and proper shank seating before operation. Shank diameter tolerance is h6 - confirm toolholder bore tolerance matches before securing. Follow machine tool manufacturer guidelines for speed, feed, and depth of cut when transitioning between roughing and finishing passes.
