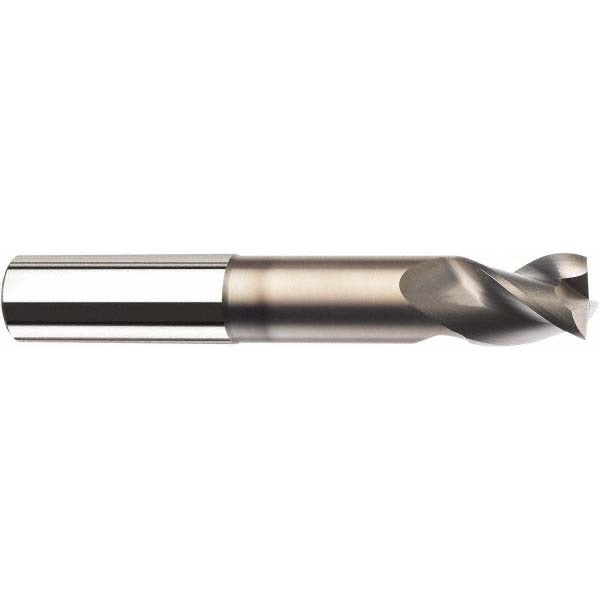

Sgs 35796 Corner Radius End Mill 1/2 in 3 Flute Carbide

Product Description

The SGS 35796 is a solid carbide corner radius end mill designed for high-performance material removal in non-ferrous metal applications. It features a 1/2 inch diameter with a 0.015 inch corner radius, 3 helical flutes, and a short-length geometry with a 5/8 inch length of cut and 4 inch overall length. The high helix, right-hand cutting configuration promotes efficient chip evacuation in aluminum, copper, brass, and similar materials. Extended reach geometry with a 2-1/4 inch reach length and 0.480 inch neck diameter allows access in deeper pockets or stepped features. Machinists and CNC operators install this end mill for roughing operations where a corner radius protects edge integrity and extends tool life.

The SGS 35796 is suited for roughing passes in non-ferrous metals on CNC milling centers and vertical machining centers. The Series 43LC design targets applications requiring an extended reach profile with a reduced neck diameter. The straight cylindrical shank is sized at 1/2 inch for compatibility with standard end mill holders. The coarse pitch and high helix angle are optimized for aggressive material removal rates in softer, gummy, or high-conductivity materials where chip packing is a common issue.

Key Features

• Solid carbide construction for rigidity and wear resistance in non-ferrous cutting
• 0.015 inch corner radius reduces stress concentrations and extends tool life at pocket corners
• 3 right-hand helical flutes with coarse pitch for efficient chip evacuation
• Extended reach with 2.250 inch reach length and 0.480 inch neck diameter for deep pocket access
• High helix angle promotes smooth cutting action in aluminum and other non-ferrous materials
• Single-end, center-cutting design compatible with standard end mill holders

Compatibility

Designed for use with standard end mill holders accepting a 1/2 inch straight cylindrical shank. Intended for non-ferrous metal workpiece materials. Series 43LC extended reach configuration.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and the tool holder is clean and free of debris before seating the shank. Confirm the end mill holder is torqued according to the holder manufacturer specifications. Verify runout after installation before beginning a cutting pass, as excessive runout accelerates wear on a corner radius tool.
