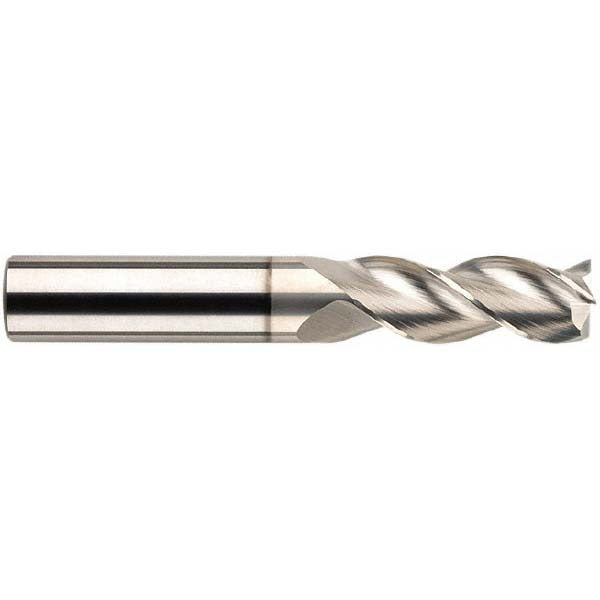

Sgs 34832 Square End Mill 0.5 in 3 Flute Solid Carbide

Product Description

The SGS 34832 is a solid carbide square end mill designed for high-accuracy material removal in metalworking and machining applications. With a 0.5-inch mill diameter, a 2.5-inch length of cut, and a 5-inch overall length, this tool is built for general-purpose milling where dimensional control matters. The 3-flute geometry provides a balance between chip clearance and cutting edge strength, making it well suited to slotting, profiling, and peripheral milling. A 38-degree helix angle promotes smooth cutting action and efficient chip evacuation. The uncoated solid carbide construction suits applications where coating is unnecessary or where re-sharpening is anticipated.

This end mill is intended primarily for non-ferrous metal workpieces, including aluminum, brass, copper, and similar materials. It is a right-hand cut, right-hand flute tool with a straight cylindrical shank and is centercutting, allowing plunge entry directly into the workpiece. The 0.5-inch shank diameter matches the mill diameter for direct collet or end mill holder mounting. It fits standard milling machines, CNC machining centers, and manual knee mills used in production and job shop environments. Machinists and toolroom operators are the typical end users.

Key Features

• 0.5-inch mill diameter with tight tolerance of +0.00000 to -0.00043 inches for precise fitment
• 2.5-inch length of cut suitable for deep slot and pocket work
• 3-flute design balances chip clearance with edge strength in non-ferrous applications
• 38-degree helix angle promotes efficient chip evacuation and smooth cutting action
• Centercutting geometry allows direct plunge entry without pre-drilling
• Solid carbide construction provides rigidity and wear resistance at elevated cutting speeds

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide square end mill for standard 0.5-inch collets, end mill holders, and hydraulic chucks on CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist following standard toolholding procedures. Ensure the machine spindle is fully powered down and locked before inserting or removing the tool. Verify collet or holder bore size matches the 0.5-inch shank diameter and that runout is within acceptable tolerance before beginning a cut. Follow applicable shop safety procedures and machine manufacturer guidelines for speeds, feeds, and depth of cut when working with carbide tooling.
