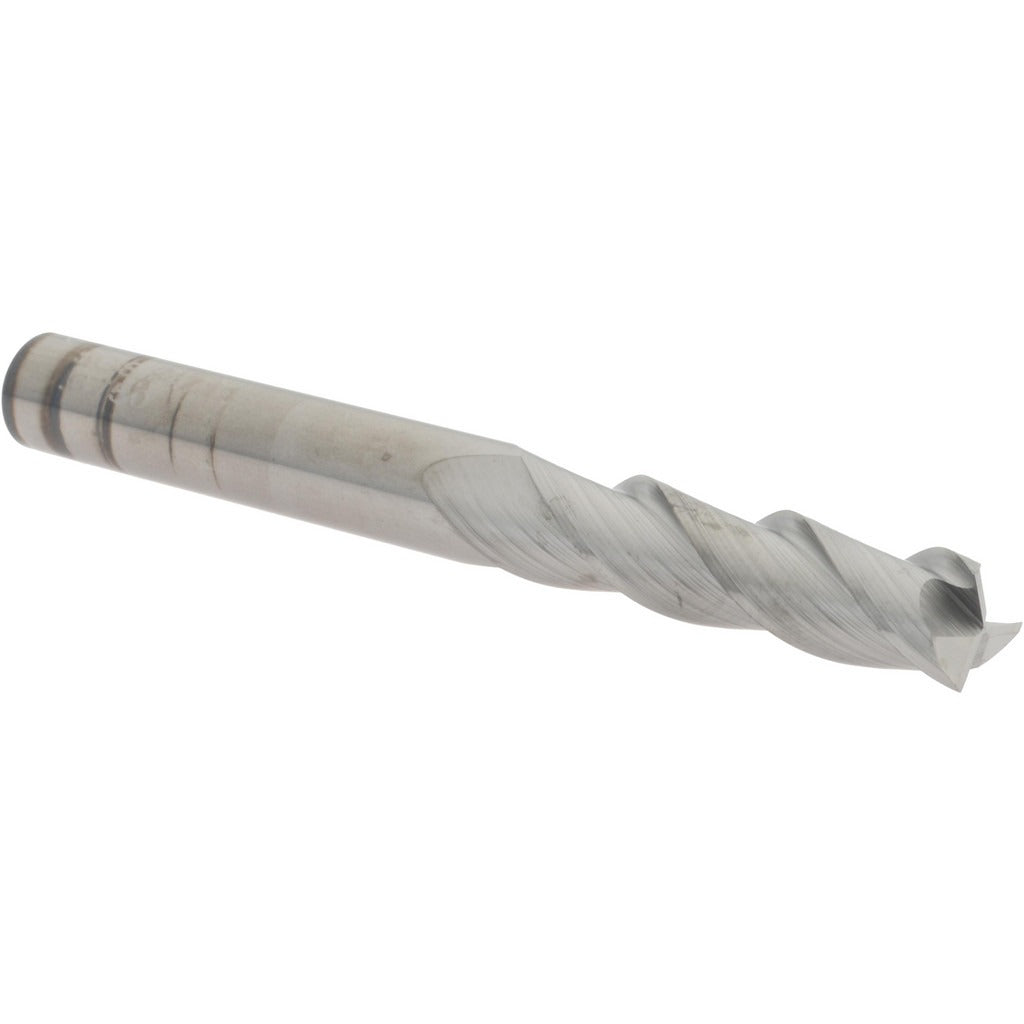

Sgs 34711 Square End Mill 3/8 in 3 Flute Solid Carbide

Product Description

The SGS 34711 is a solid carbide square end mill designed for precision material removal in ferrous and non-ferrous metal machining applications. With a 3/8 inch cutting diameter, a 1-1/2 inch length of cut, and a 3-1/2 inch overall length, this tool delivers consistent performance in milling, slotting, and profiling operations. The three-flute geometry and 38-degree helix angle promote efficient chip evacuation and smooth cutting action. The uncoated solid carbide construction offers excellent rigidity and wear resistance in a compact, regular-length form factor suited to CNC machining centers and manual mills alike.

This end mill is built for use on non-ferrous metals as its primary workpiece material, including aluminum, brass, copper, and similar alloys. The right-hand cut and right-hand spiral flute configuration suits standard spindle rotation on vertical machining centers. The straight cylindrical shank and 3/8 inch shank diameter fit standard ER and end mill collet holders commonly found in shop environments. It is a single-end tool from SGS Series 43, packaged and sold individually.

Key Features

• 3/8 inch cutting diameter with a tight mill diameter tolerance of +0.00000/-0.00035 inches for precise fitment
• Three-flute spiral design with 38-degree helix angle for efficient chip evacuation
• Solid carbide construction for rigidity and durability in non-ferrous applications
• Right-hand cut and right-hand flute orientation for standard CNC and manual mill spindles
• Straight cylindrical shank at 3/8 inch diameter with shank tolerance of +0.00000/-0.00035 inches
• Regular length profile — 3-1/2 inch OAL — for stable, vibration-resistant cutting

Compatibility

Designed for use with standard 3/8 inch end mill collet holders and ER collet systems. Intended primarily for non-ferrous metal workpiece materials per SGS Series 43 specifications. Not center-cutting; not intended for plunge milling operations.

Installation Notes

Installation should be performed by a qualified machinist familiar with CNC or manual milling equipment. Ensure the machine spindle is fully stopped and locked out before inserting or removing the tool from the collet holder. Seat the shank to the recommended engagement depth as specified by the collet or toolholder manufacturer. This tool is not center-cutting and should not be used for direct plunge cuts into solid material.
