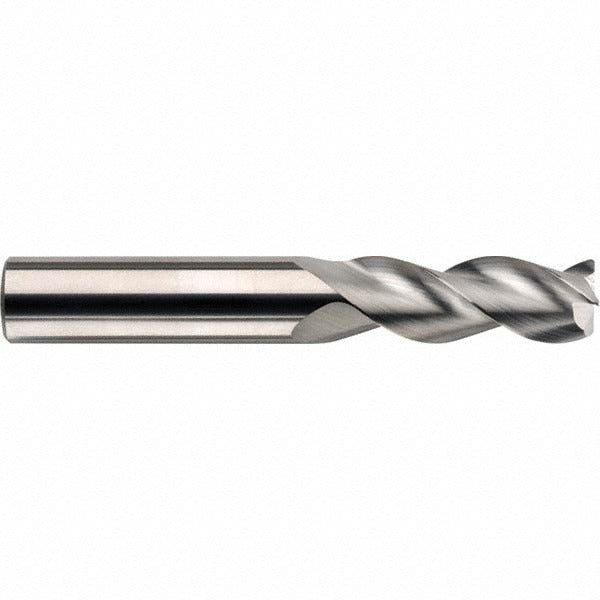

Sgs 32795 Corner Radius End Mill 3/4 in 3 Flute Carbide

Product Description

The SGS 32795 is a solid carbide corner radius end mill designed for material removal in non-ferrous metal applications. It features a 3/4 inch (0.7500 inch) cutting diameter, a 1 inch length of cut, and a 0.03 inch corner radius that reduces stress concentration at the cutting edge and extends tool life in demanding milling operations. With 3 flutes in a right-hand spiral configuration and a high helix angle of 38 degrees, this end mill promotes efficient chip evacuation and smooth cutting action. The extended reach design and 6 inch overall length make it suitable for deeper cavity work where standard-length tools fall short. It is installed and operated by machinists and CNC tooling professionals.

This end mill is intended for use in non-ferrous metal milling operations, including aluminum, brass, copper, and similar materials. The coarse pitch and micrograin carbide substrate support roughing passes where aggressive material removal rates are required. The 3/4 inch straight-cylindrical shank fits standard end mill toolholders, and the single-end configuration is typical for CNC machining centers and manual mills alike. Extended reach of 2.375 inches allows access to features that require clearance past the toolholder face.

Key Features

• Solid micrograin carbide construction for rigidity and wear resistance in non-ferrous metal cutting
• 0.03 inch corner radius reduces chipping at the cutting edge and improves surface finish at floor-wall junctions
• High helix, 3-flute design promotes chip evacuation in aluminum and other gummy non-ferrous alloys
• Extended reach of 2.375 inches for deep-cavity and long-reach milling applications
• Bright/uncoated finish suited for non-ferrous materials where coatings can cause built-up edge
• Right-hand cut, right-hand flute spiral — compatible with standard CNC spindle rotation

Compatibility

Designed for use with standard end mill toolholders. Optimized for non-ferrous metal workpiece materials per the SGS Series 43LC S-Carb specification.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the control is in an e-stop or tool-change state before inserting or removing the end mill. Seat the 3/4 inch straight-cylindrical shank to the full recommended grip depth in the toolholder to minimize runout and overhang deflection. Verify toolholder collet or set-screw torque per the toolholder manufacturer's specification before beginning a cut.
