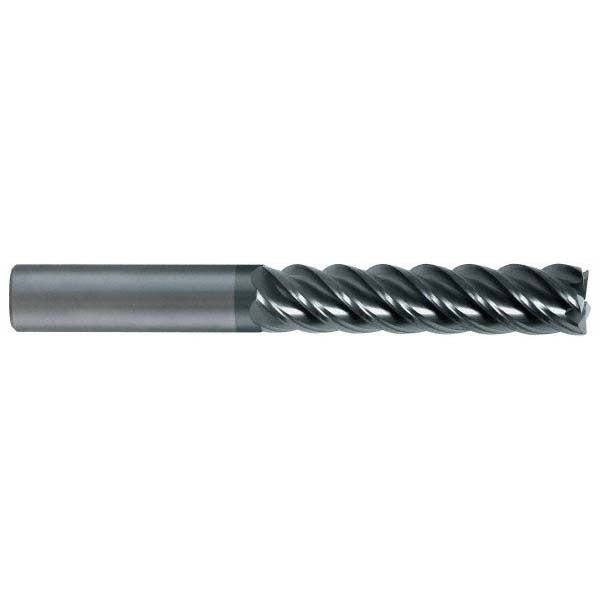

Sgs 32688 Corner Radius End Mill 3/4 in 5 Flute Altin

Product Description

The SGS 32688 is a solid carbide corner radius end mill designed for high-performance material removal in demanding machining environments. Built to Series 55CR standards, this single-end tool features a 3/4 inch cutting diameter, a 0.06 inch corner radius, and 5 flutes with a high helix angle of 45 degrees. The AlTiN (Ti-NAMITE-A) coating provides excellent heat resistance and extended tool life when cutting ferrous and hard materials. At 6 inches overall length with a 3-1/4 inch length of cut, this is an extra-long reach end mill suited for deep-pocket and long-reach milling operations. Machinists and CNC operators working in job shops, aerospace, and precision manufacturing environments will find this tool appropriate for both roughing and finishing passes.

This end mill is engineered for use in steel, stainless steel, cast iron, superalloys, titanium, and hard materials. Its variable index geometry reduces harmonic chatter, making it effective in high-material-removal-rate applications. The straight-cylindrical shank is sized at 3/4 inch diameter with an h6 tolerance, making it compatible with standard end mill holders used in vertical and horizontal machining centers. The right-hand flute direction and right-hand cutting direction are standard for conventional CNC milling setups.

Key Features

• AlTiN (Ti-NAMITE-A) coating for high heat resistance and extended tool life in ferrous and hard-material cutting
• 0.06 inch corner radius reduces stress concentration and improves surface finish at pocket floors and walls
• 5-flute, high-helix (45 degree) design supports both roughing and finishing in a single tool
• Variable index geometry minimizes chatter during aggressive cuts
• Extra-long 6 inch OAL with 3-1/4 inch LOC for deep-pocket and long-reach applications
• Straight-cylindrical 3/4 inch shank with h6 tolerance fits standard end mill holders

Compatibility

Designed for use with standard end mill holders. Primary workpiece materials include steel, stainless steel, cast iron, superalloys, and titanium. Secondary workpiece material is hard material. Not centercutting — not suitable for direct plunge entry.

Installation Notes

This tool is installed and operated by machinists and CNC technicians on vertical or horizontal machining centers. Secure the shank fully in a properly sized end mill holder and verify runout before cutting. Ensure the machine spindle and work-holding are powered down and locked out before tool changes. Do not use this tool for plunge cutting, as it is a non-centercutting design.
