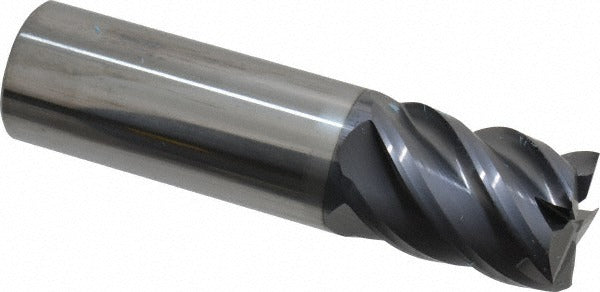

Sgs 32682 Square End Mill 3/4 in 5 Flute Solid Carbide Altin

Product Description

The SGS 32682 is a solid carbide square end mill engineered for demanding material removal in precision machining applications. This Series 55 tool features a 3/4-inch cutting diameter, 1-inch length of cut, and a 5-flute spiral configuration with a 45-degree helix angle and AlTiN coating. The AlTiN finish improves heat resistance and extends tool life in high-speed cutting operations. Manufactured from micrograin carbide stock, it delivers consistent edge geometry across the full cutting length. The variable index design reduces chatter and harmonic vibration during the cut, making it well suited for finishing and semi-finishing passes in ferrous and hardened materials.

This end mill is used in CNC milling operations across job shops, aerospace component manufacturing, die and mold work, and general precision machining. The stub length profile and straight-cylindrical shank keep deflection low in tight setups. The right-hand cut, right-hand flute orientation is standard for conventional vertical and horizontal milling centers. It is not center-cutting, so it is not suited for direct plunge entry without a pre-drilled start hole.

Key Features

• 5-flute spiral design with 45-degree helix for efficient chip evacuation and surface finish quality
• Variable index flute spacing reduces vibration and chatter during high-feed passes
• AlTiN coating provides thermal barrier for extended tool life in dry and high-speed machining
• Micrograin solid carbide construction maintains edge sharpness under high cutting loads
• Straight-cylindrical shank sized at 3/4 inch for direct collet or end mill holder mounting
• Stub length profile minimizes overhang and deflection in close-clearance setups

Compatibility

Designed for use in CNC milling machines accepting a 3/4-inch straight-cylindrical shank. Compatible with standard ER collet chucks, side-lock holders, and shrink-fit tooling systems sized for 3/4-inch shank end mills.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the spindle is fully stopped and locked before inserting or removing tooling. Seat the shank to the full recommended gauge-length depth in the holder and torque the retention mechanism per the toolholder manufacturer specification. Inspect the cutting edges for chips or damage before each use and confirm runout with a dial indicator when tight tolerances are required.
