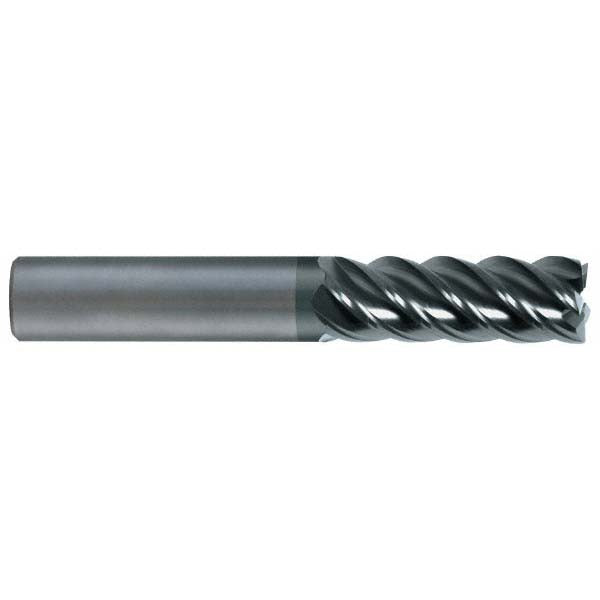

Sgs 32675 Square End Mill 5/16 in 5 Flute Altin Carbide

Product Description

The SGS 32675 is a 5-flute solid carbide square end mill designed for high-performance milling in demanding metal-cutting applications. Built from micrograin carbide with an AlTiN coating, this end mill offers excellent heat resistance and wear life at elevated cutting speeds. It features a 45-degree helix angle, a variable index flute geometry to reduce chatter and improve surface finish, and a right-hand cut with right-hand spiral flutes. The stub-length profile keeps deflection low when rigidity matters most. Installation and use are handled by machinists and CNC operators in job shop and production environments.

The SGS 32675 is suited for milling ISO workpiece material groups H, K, M, P, and S, covering hardened steels, cast irons, stainless steels, carbon and alloy steels, and high-temperature alloys. Its stub length and 7/16-inch length of cut make it best suited for shallow-to-moderate pocket, slot, and profile operations where tool overhang must be minimized. The straight cylindrical shank fits standard end mill holders, collet chucks, and shrink-fit tooling.

Key Features

• 5-flute micrograin solid carbide construction for rigidity and long tool life
• AlTiN coating provides high heat resistance for dry and high-speed cutting
• 45-degree helix angle promotes efficient chip evacuation and smooth cutting action
• Variable index flute spacing reduces harmonics and chatter during milling
• Right-hand cut, right-hand spiral flutes; not center-cutting - not suitable for direct plunge operations
• Stub-length OAL minimizes deflection in short-reach applications

Compatibility

Designed for use in ISO material groups H, K, M, P, and S; fits standard straight-bore end mill holders, ER collet chucks, and shrink-fit tooling accepting a 5/16-inch shank diameter.

Installation Notes

This tool is installed by machinists and CNC operators - ensure the machine spindle is fully stopped and locked out before changing tooling. Verify holder bore cleanliness and shank seating before torquing set screws or clamping. Because this end mill is not center-cutting, ramping or helical interpolation entry strategies must be used instead of direct plunge. Follow the tooling manufacturer and machine builder guidelines for speed, feed, and depth-of-cut parameters appropriate to the workpiece material group.
