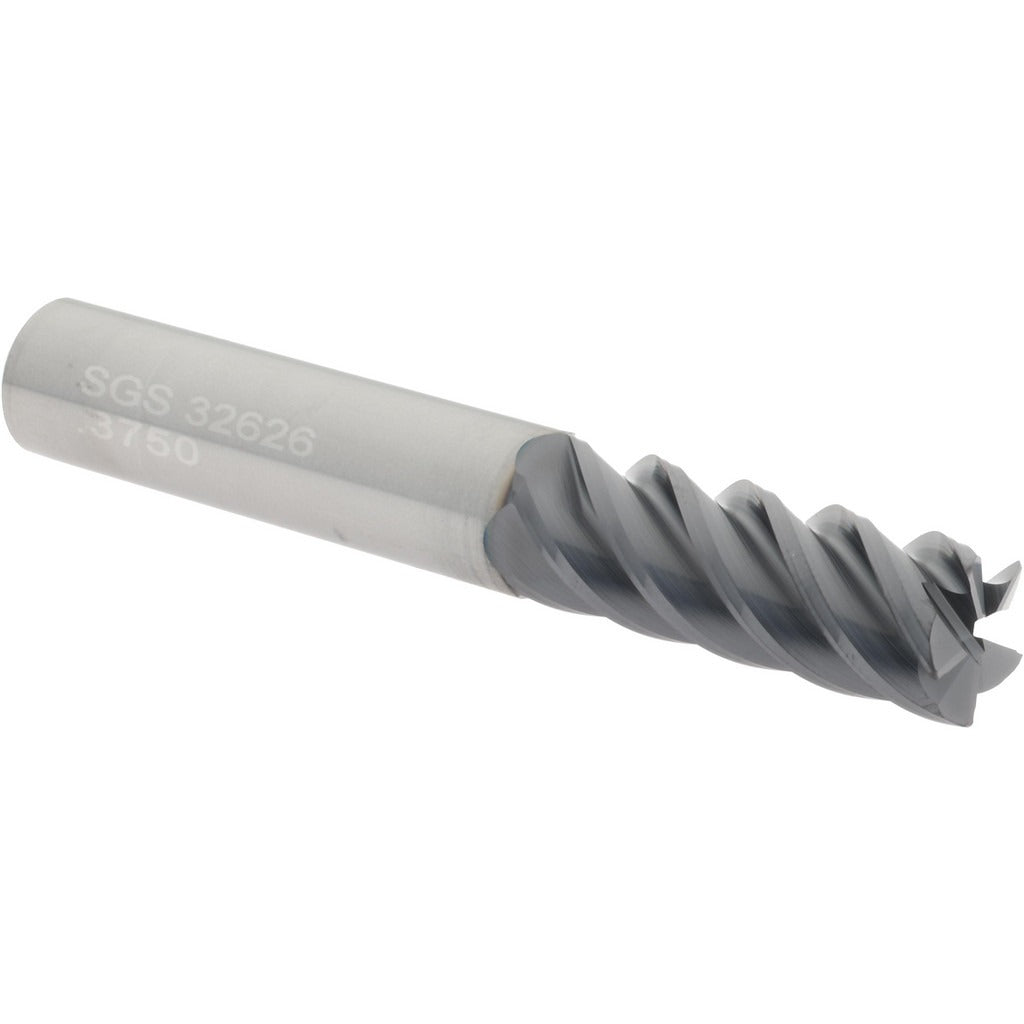

Sgs 32626 Corner Radius End Mill 3/8 in 5 Flute Altin

Product Description

The SGS 32626 is a solid carbide corner radius end mill engineered for high-performance material removal in demanding machining environments. With a 3/8 inch cutting diameter, 1 inch length of cut, and a 0.015 inch corner radius, this single-end mill handles both roughing and finishing operations in a single tool. The 5-flute, right-hand helical design paired with a Ti-NAMITE-A AlTiN coating provides excellent heat resistance and wear life at elevated cutting speeds. The micrograin carbide substrate supports edge integrity when cutting abrasive or hard workpiece materials.

This end mill is suited for shops and maintenance machinists working with steel, stainless steel, cast iron, superalloys, titanium, and hard materials. The 3/8 inch straight cylindrical shank seats directly into standard end mill holders. The Series 55C variable index geometry reduces chatter and improves surface finish in both CNC machining centers and manual mill setups across light industrial and production applications.

Key Features

• 5-flute, right-hand helical flute design supports roughing and finishing in a single pass
• AlTiN (Ti-NAMITE-A) coating delivers high-temperature hardness and oxidation resistance
• 0.015 inch corner radius reduces edge chipping and extends tool life at workpiece corners
• Variable index geometry minimizes harmonic vibration and chatter during cutting
• Micrograin solid carbide substrate provides rigidity and edge retention in hard materials
• Straight cylindrical shank compatible with standard end mill holders

Compatibility

Designed for use with standard end mill holders. Suitable for machining steel, stainless steel, cast iron, superalloys, titanium, and hard materials as primary and secondary workpiece applications.

Installation Notes

Installation should be performed by a qualified machinist familiar with rotating cutting tool setups. Secure the shank fully within the end mill holder to the recommended engagement depth before tightening. Verify spindle runout is within acceptable limits prior to cutting, as excessive runout will accelerate corner radius wear. Always power down and lock out the machine spindle before changing or inspecting tooling.
