Sgs 32609 Corner Radius End Mill 0.1563 in 5 Flute Altin

Product Description

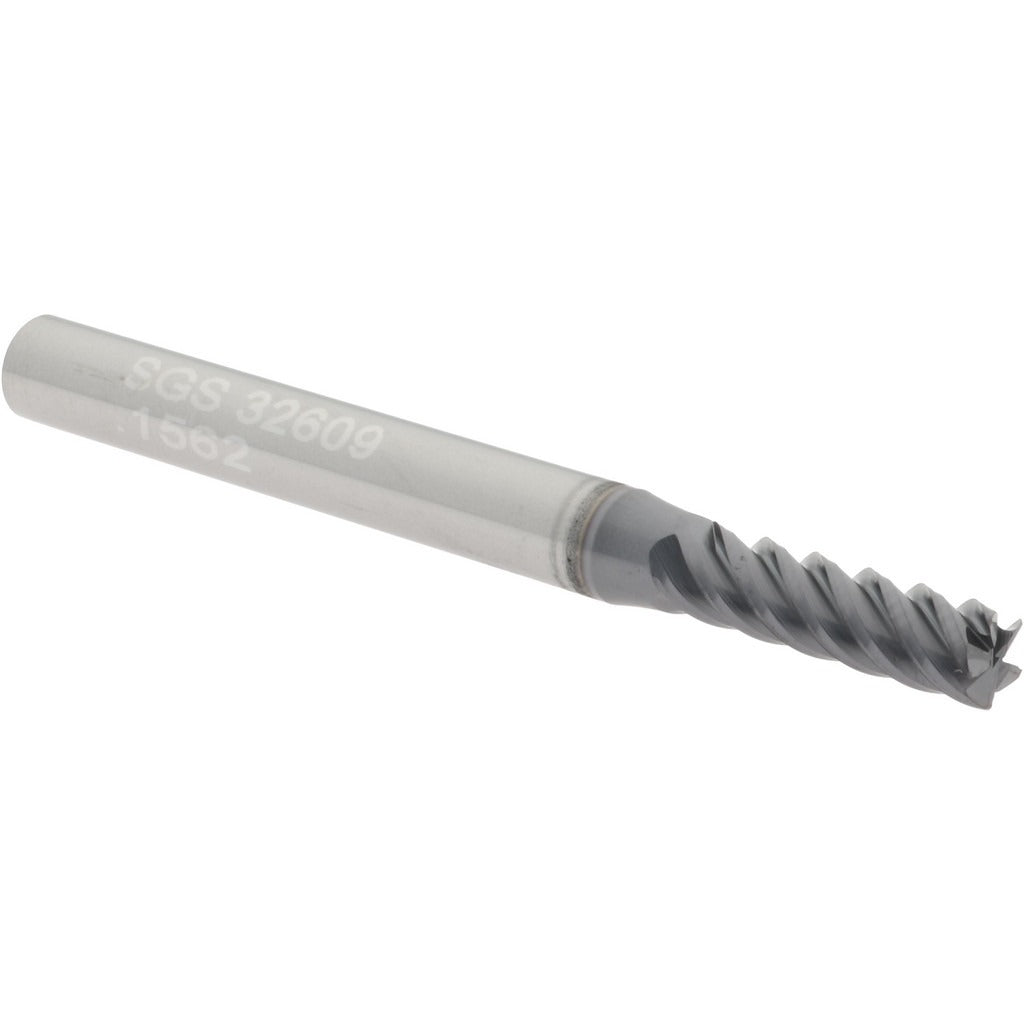

The SGS 32609 is a solid carbide corner radius end mill engineered for high-performance metal removal in demanding machining environments. Measuring 0.1563 inches in diameter with a 0.01-inch corner radius, this single-end tool features 5 helical flutes with a variable index design that reduces harmonic chatter during cuts. The AlTiN coating, designated Ti-NAMITE-A by SGS, provides excellent thermal resistance and hardness at elevated cutting temperatures. At 2 inches overall length with a 9/16-inch length of cut, the 32609 is classified as a long-reach tool suited for milling operations requiring reach into pockets or slots. It is installed in standard end mill holders and operated by CNC machinists and manual mill operators in production and job-shop settings.

The SGS 32609 is designed for milling steel, stainless steel, cast iron, superalloys, and titanium, as well as hard materials. Its high-helix geometry and AlTiN coating make it well suited for finishing and roughing passes on difficult-to-machine alloys where heat generation and tool wear are primary concerns. The long flute configuration supports slotting, profiling, and contour milling. The 3/16-inch straight-cylindrical shank seats directly into end mill holders for secure retention at higher spindle speeds typical of carbide tooling applications.

Key Features

• 0.01-inch corner radius reduces stress concentration and extends tool life at corner transitions
• 5-flute variable index geometry minimizes chatter and improves surface finish
• AlTiN Ti-NAMITE-A coating delivers high thermal resistance for dry or minimal-coolant cutting
• Micrograin solid carbide substrate provides hardness and wear resistance in ferrous and superalloy materials
• Right-hand cut, right-hand helix configuration compatible with standard CNC and manual milling setups
• Long-reach length type at 9/16-inch LOC supports deeper pocket and slot milling applications

Compatibility

Designed for use with end mill holders. Suitable for machining steel, stainless steel, cast iron, superalloys, titanium, and hard materials per SGS Series 55CR material application designations P, M, K, S, and H.

Installation Notes
