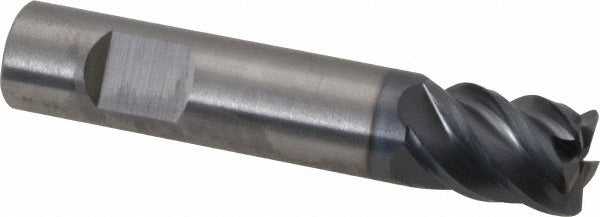

Sgs 32593 Corner Radius End Mill 3/8 in 5 Flute Altin Carbide

Product Description

The SGS 32593 is a solid carbide corner radius end mill designed for high-performance milling of ferrous and difficult-to-machine materials. It features a 3/8 inch cutting diameter, a 0.03 inch corner radius, and five flutes with a high helix configuration that supports both roughing and finishing operations in a single tool. The AlTiN coating, designated Ti-NAMITE-A by SGS, provides heat resistance and wear protection at elevated cutting temperatures. The Weldon flat shank provides positive drive and reduces pullout risk in demanding cuts. This tool is intended for use in CNC machining centers with end mill holders.

The 32593 is suited for milling steel, stainless steel, cast iron, superalloys, titanium, and hard materials. Its short flute length of 1/2 inch and 2 inch overall length make it appropriate for rigid setups requiring close-tolerance corner radii in die work, aerospace components, and general precision machining. The variable index geometry helps reduce chatter and vibration during aggressive material removal. It is a single-end tool, so once worn it is resharpened or replaced rather than flipped.

Key Features

• AlTiN (Ti-NAMITE-A) coating for elevated-temperature wear resistance in ferrous and hard materials
• Five-flute, high helix design supports simultaneous roughing and finishing passes
• 0.03 inch corner radius reduces stress concentration and extends tool life at part edges
• Variable index flute spacing reduces chatter in difficult cuts
• Weldon flat shank for positive retention in standard end mill holders
• Right-hand cut and right-hand helical flutes; no coolant-through, no chipbreaker

Compatibility

Designed for use with standard end mill holders accepting a 3/8 inch Weldon flat shank. Primary workpiece materials are steel, stainless steel, cast iron, superalloys, and titanium; secondary application is hard materials per SGS material codes P, M, K, S, and H.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Secure the shank fully into the end mill holder to the recommended gauge-line depth before tightening set screws against the Weldon flat. Inspect the holder bore and shank for contamination or wear before mounting. Do not exceed the tool manufacturer's recommended speeds and feeds for the workpiece material and depth of cut.
