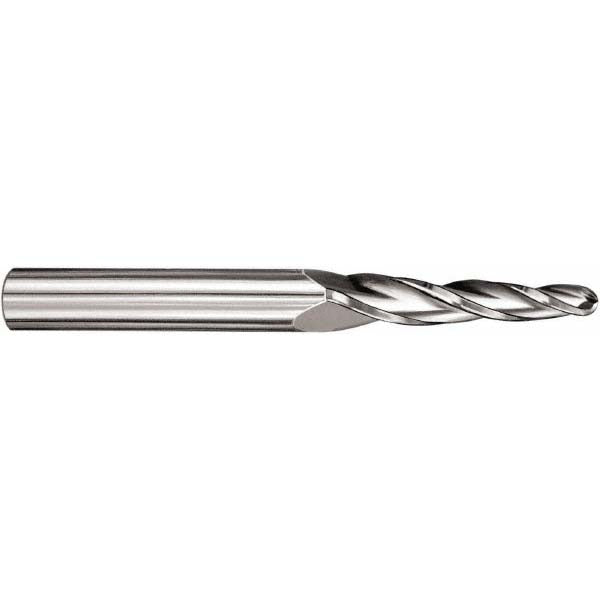

Sgs 32475 Tapered Ball End Mill 7 Degree 3 Flute Altin

Product Description

The SGS 32475 is a solid carbide tapered ball end mill designed for precision milling in demanding applications. Built on the Series 24 platform, it features a 7-degree taper angle per side and a 0.5-inch length of cut, making it well-suited for profiling, contouring, and 3D machining of deep cavities and mold features. The 3-flute spiral geometry with a 28-degree helix angle promotes efficient chip evacuation while maintaining surface finish quality. An AlTiN coating extends tool life in high-temperature cutting environments. The 1/4-inch shank diameter and 3-inch overall length allow reach into tight or deep workpiece features where rigidity must be balanced against access.

This tapered ball end mill is used in CNC machining centers for mold and die work, aerospace component machining, and precision part production. The micrograin carbide substrate and AlTiN coating make it appropriate for cutting hardened steels, stainless, titanium alloys, cast iron, aluminum, and other non-ferrous and exotic materials. It is a center-cutting tool, allowing plunge entry as well as conventional and climb milling passes.

Key Features

• 7-degree taper angle per side for controlled draft and smooth cavity profiling
• Ball end geometry with a 0.062-inch nose radius for 3D contour and fillet work
• 3-flute spiral design with 28-degree helix for balanced chip load and finish quality
• AlTiN coating for elevated heat resistance and extended tool life in ferrous and exotic materials
• Micrograin solid carbide substrate for rigidity and wear resistance
• Center-cutting capability allows direct plunge entry into workpiece material

Compatibility

Compatible with CNC machining centers and milling machines accepting a 1/4-inch straight shank. Rated for primary workpiece material codes H, K, M, N, P, and S, covering hardened steels, cast iron, stainless steels, non-ferrous metals, low-carbon steels, and high-temperature alloys.

Installation Notes

Installation should be performed by a qualified CNC machinist or toolroom technician. Ensure the machine spindle and tool holder are clean and free of debris before seating the shank. Verify runout at the tool tip after clamping, as excessive runout accelerates wear and reduces surface finish quality. Confirm feed rate, spindle speed, and depth of cut are set per the applicable speeds-and-feeds data for the workpiece material before initiating a cut.
