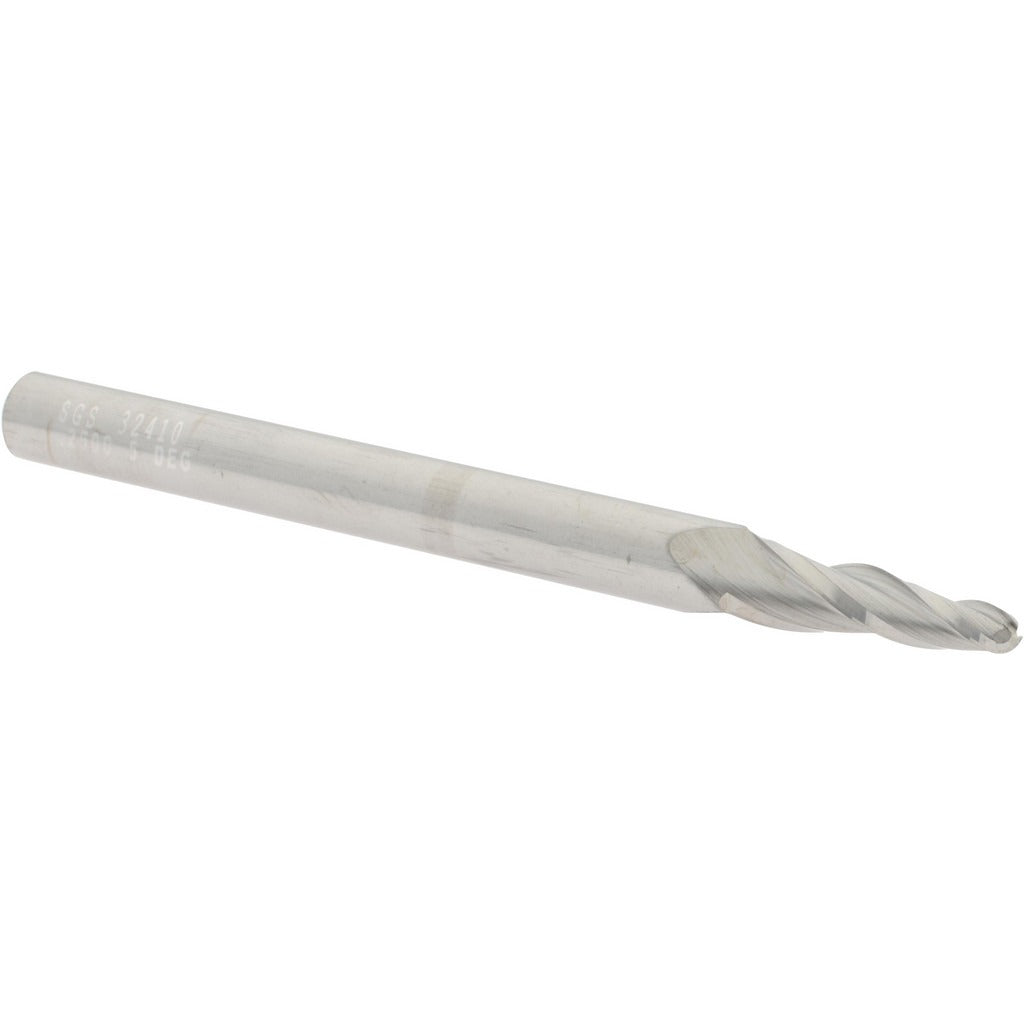

Sgs 32410 Tapered Ball End Mill 5 Deg 1/8 in Solid Carbide

Product Description

The SGS 32410 is a tapered ball end mill designed for precision milling operations in demanding material applications. Built from micrograin solid carbide, this tool delivers the rigidity and edge retention required for cutting ferrous alloys, stainless steel, non-ferrous metals, plastics, and superalloys. The ball end geometry produces a 1/16 inch nose radius, making it well suited for contoured surface work, 3D profiling, and finishing passes in tight areas. With a 5-degree taper per side, it bridges small-feature access with controlled wall geometry. Three spiral flutes with a 28-degree helix angle and a bright uncoated finish keep the tool running efficiently across a broad range of workpiece materials.

This end mill is built for machinists and tooling specialists running CNC machining centers in job shop, aerospace, medical, and general precision manufacturing environments. The 1/8 inch small end diameter and 3/4 inch length of cut make it appropriate for fine detail work, die and mold contouring, and narrow-slot profiling where a straight end mill cannot access tapered walls or angled draft surfaces. The 1/4 inch shank fits standard collet systems. This tool is center-cutting, allowing plunge entry without a pre-drilled start hole.

Key Features

• Micrograin solid carbide construction for superior edge retention and rigidity
• 5-degree taper per side for precise angled wall and draft surface milling
• Ball end with 1/16 inch nose radius for 3D contouring and radius floor finishing
• 3 spiral flutes at 28-degree helix angle for balanced chip evacuation
• Center-cutting design allows direct plunge entry
• Bright uncoated finish compatible with a wide range of workpiece materials including Series 24B material grades H, K, M, N, P, and S

Compatibility

Rated for primary workpiece material codes H, K, M, N, P, and S per the supplier specification, covering cast iron, non-ferrous metals, stainless steel, non-metals, steel, and superalloys. Part of the SGS Series 24B tapered ball end mill line.

Installation Notes

Installation is performed by a machinist or tooling technician using a standard ER or TG collet chuck sized for a 1/4 inch shank. Verify runout at the collet before beginning any cut, as micrograin carbide is brittle and sensitive to misalignment. Confirm spindle speed and feed rate are set per the material group before engaging the workpiece. Never exceed the rated depth of cut for the listed length of cut of 3/4 inch.
