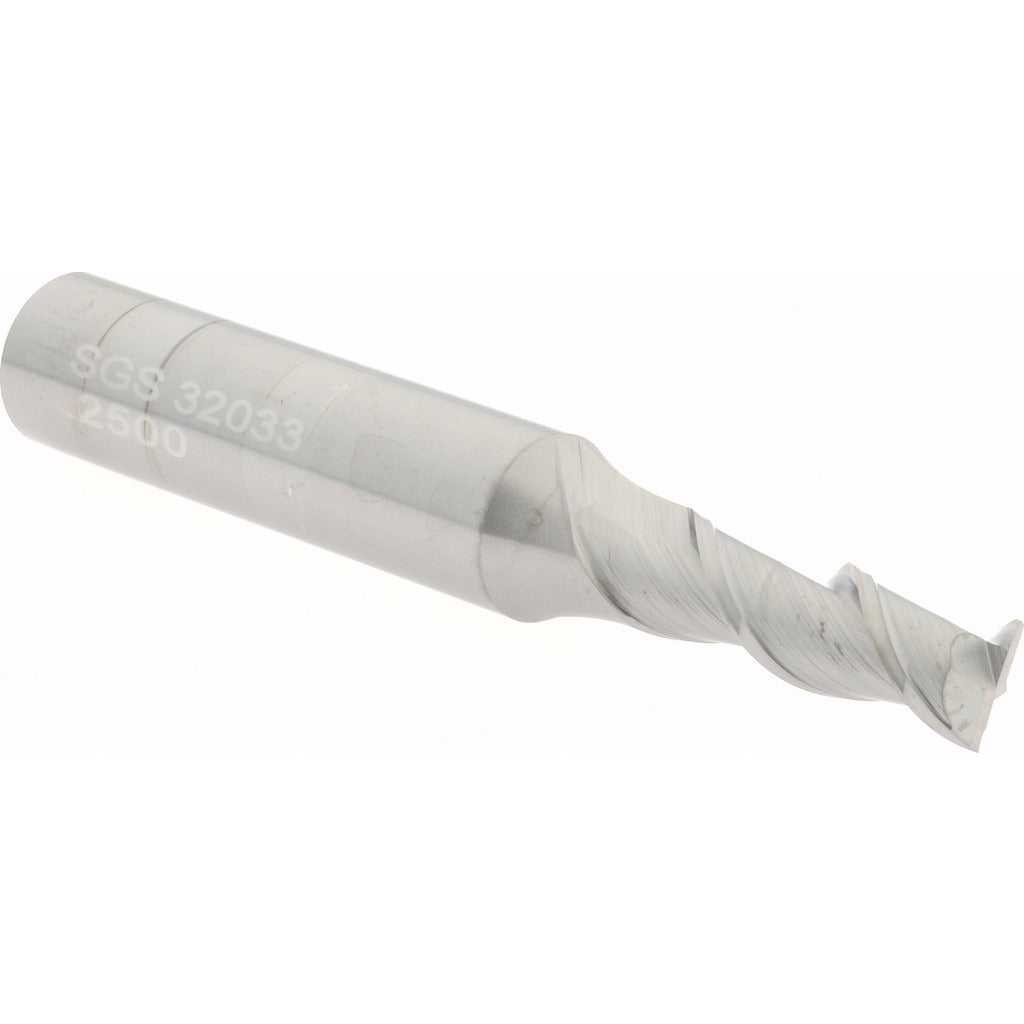

Sgs 32033 Square End Mill 1/4 in 2 Flute Solid Carbide

Product Description

The SGS 32033 is a solid carbide square end mill designed for precision milling operations in metalworking and machining applications. It features a 1/4 inch cutting diameter with a 3/4 inch length of cut and a 2-7/16 inch overall length. The 2-flute, right-hand spiral geometry with a 45-degree helix angle promotes efficient chip evacuation and reduces cutting forces during slotting, profiling, and contouring. Manufactured from micrograin carbide, the 32033 delivers consistent edge integrity across ferrous and non-ferrous materials. The bright, uncoated finish makes it suitable for applications where coating buildup or heat-sensitive workpieces are a concern. This is a single-end, centercutting tool.

The SGS 32033 fits standard milling applications in CNC machining centers and manual mills. The 3/8 inch shank diameter accepts common ER and straight-bore collet systems found in production and job-shop environments. Its compact 1/4 inch diameter makes it well-suited for finishing passes, slot milling, and detail work in dies, molds, and precision components. This tool is used by machinists and CNC operators in general manufacturing, tool and die, and aerospace fabrication settings.

Key Features

• 1/4 inch cutting diameter with a 3/4 inch length of cut for controlled depth engagement
• 2-flute, right-hand spiral design with 45-degree helix for efficient chip removal
• Centercutting geometry allows direct plunge entry into workpiece material
• Micrograin solid carbide construction provides edge hardness and wear resistance
• Bright, uncoated finish suitable for dry cutting and heat-sensitive materials
• Series 44 single-end tool with 3/8 inch shank diameter and tight diameter tolerances

Compatibility

Designed as a standard-shank replacement or production end mill for use in CNC machining centers and manual milling machines accepting a 3/8 inch collet or tool holder.

Installation Notes

Installation is performed by qualified machinists or CNC operators. Ensure the spindle is fully stopped and machine power is locked out before changing tooling. Seat the 3/8 inch shank fully into the collet or tool holder and torque the retention nut to the tool holder manufacturer's specification. Verify runout with a dial indicator before beginning the cut to protect both the tool and the workpiece.
