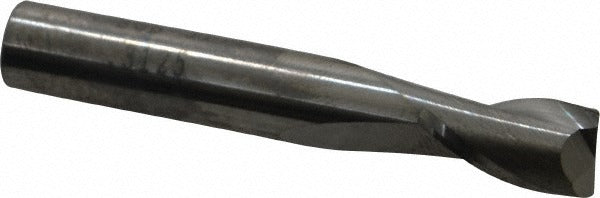

Sgs 31715 Square End Mill 5/16 Inch 2 Flute Carbide

Product Description

The SGS 31715 is a solid carbide square end mill designed for precision milling in metalworking and manufacturing applications. It features a 5/16-inch cutting diameter, a 1/2-inch length of cut, and a 2-inch overall length, classifying it as a stub-length tool. The two-flute, right-hand spiral configuration with a 30-degree helix angle promotes efficient chip evacuation and clean shoulder milling. Built from micrograin solid carbide and left uncoated, the 31715 delivers consistent dimensional accuracy and edge integrity across a range of workpiece materials. Licensed machinists and CNC operators are the primary users of this tool.

This end mill is suited for milling operations on a broad range of materials including cast irons, non-ferrous metals, stainless steels, carbon and alloy steels, and high-temperature alloys, as indicated by workpiece material codes H, K, M, N, P, and S. The stub length profile provides added rigidity in tight setups or shallow-depth applications where tool deflection must be minimized. It is appropriate for both production and prototype work on vertical machining centers and CNC mills.

Key Features

• Solid micrograin carbide construction for dimensional stability and edge retention
• 2-flute design promotes chip clearance in slotting and peripheral milling
• 30-degree helix angle balances cutting force and surface finish
• Centercutting geometry allows plunge entry into workpiece material
• Stub-length profile reduces deflection in shallow-reach applications
• Uncoated finish suitable for use with or without cutting fluid across multiple material types

Compatibility

Designed as an OEM-style replacement or direct-use cutting tool for CNC machining centers and manual mills accepting a 5/16-inch straight cylindrical shank. Compatible with workpiece material codes H, K, M, N, P, and S as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. The straight-cylindrical shank requires a properly sized collet or end mill holder torqued according to the machine tool manufacturer specifications. Ensure the spindle is fully stopped and the machine is in a safe state before tool changes. Confirm runout with a dial indicator after clamping to maintain tolerance and tool life.
