Sgs 31177 Square End Mill 9/64 in 4 Flute Solid Carbide

Product Description

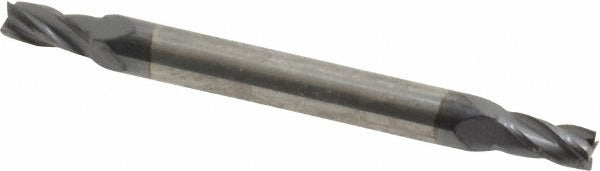

The SGS 31177 is a solid carbide square end mill designed for precision milling in demanding industrial and toolroom applications. Built to Series 14 specifications, it features a 9/64 inch (0.1406 inch) cutting diameter, a 5/16 inch length of cut, and a 3/16 inch straight-cylindrical shank with a 2 inch overall length. The double-end configuration with a 4-flute spiral geometry and AlTiN coating makes it suitable for high-speed cutting in a wide range of workpiece materials. Micrograin carbide substrate provides edge retention under elevated heat and cutting forces. Licensed machinists and CNC operators are the primary installers of this tooling.

The SGS 31177 is suited for milling operations in materials classified under workpiece material codes H, K, M, N, P, and S — covering cast iron, non-ferrous metals, stainless steel, steel, and high-temp alloys. Its stub-length classification and rigid 3/16 inch shank make it a practical choice for tight-clearance pockets and contour work on vertical machining centers and manual knee mills alike. The centercutting geometry allows plunge entry as well as conventional and climb milling passes.

Key Features

• Double-end design extends tool life by providing two usable cutting ends
• AlTiN coating improves heat resistance and tool life in ferrous and high-temp alloy cutting
• 4-flute spiral geometry with 30-degree helix angle balances chip evacuation and surface finish
• Centercutting construction allows direct plunge entry without a pre-drilled pilot hole
• Right-hand cut and right-hand flute configuration for standard spindle rotation
• Micrograin carbide substrate maintains edge sharpness and resists micro-chipping

Compatibility

Designed as an OEM-style solid carbide end mill for use in standard 3/16 inch collets or tool holders on CNC machining centers and manual milling machines.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Ensure the spindle is fully stopped and machine is in a safe lockout state before installing or changing tooling. Use a properly sized ER or precision collet rated for 3/16 inch shanks and torque the collet nut to the tool holder manufacturer's specification. Verify runout with a dial indicator before beginning a production cut.
