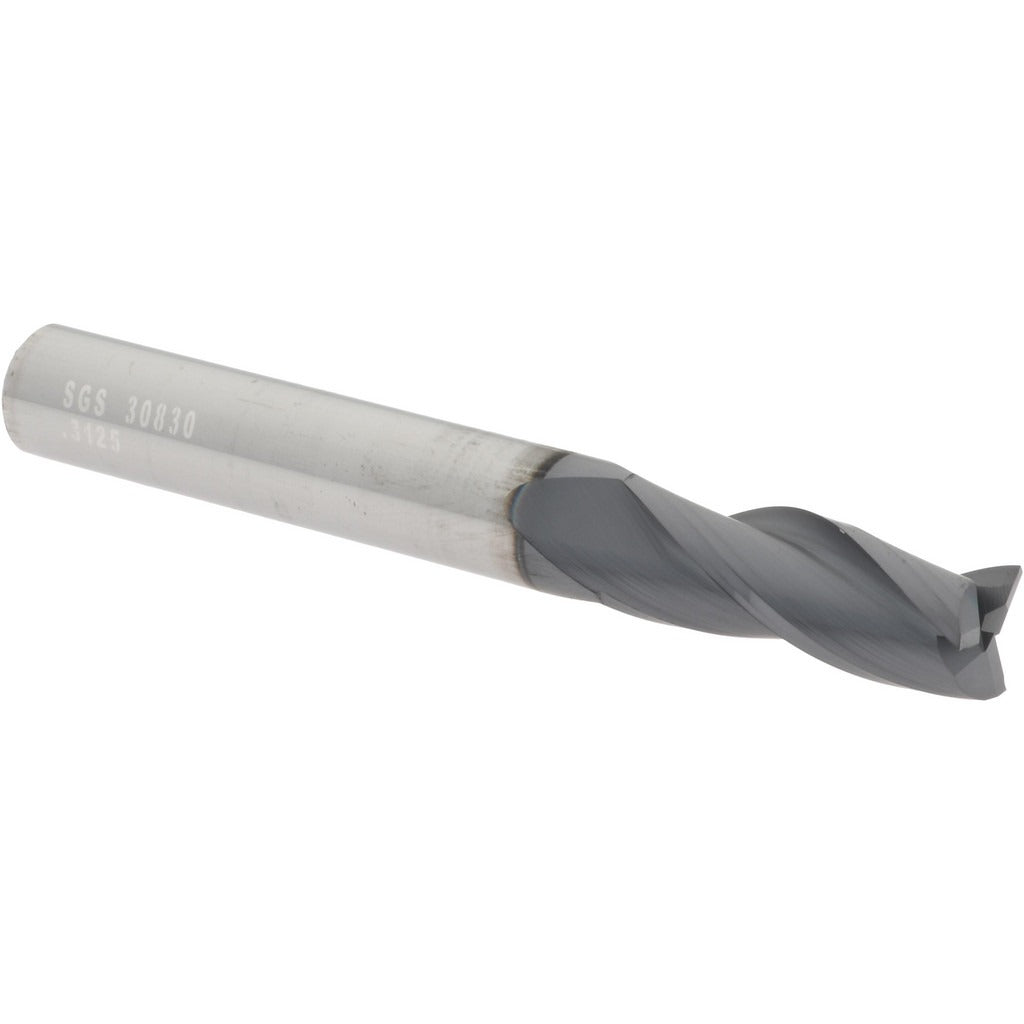

Sgs 30830 Square End Mill 5/16 in 3 Flute Solid Carbide

Product Description

The SGS 30830 is a solid carbide square end mill designed for precision material removal in machining operations. It features a 5/16 inch (0.3125 inch) diameter with a 13/16 inch (0.8125 inch) length of cut and a 2-1/2 inch overall length. The three-flute geometry combined with a 30-degree helix angle promotes efficient chip evacuation and smooth cutting action. An AlTiN (Aluminum Titanium Nitride) coating improves heat resistance and tool life in demanding cutting conditions. The micrograin carbide substrate provides the hardness and edge retention required for consistent performance across a range of workpiece materials.

This end mill is suited for milling operations on steel, stainless steel, cast iron, nonferrous metals, high-temp alloys, and similar materials corresponding to material codes H, K, M, N, P, and S. It is a single-end, right-hand cut tool with a straight cylindrical shank, making it compatible with standard collet and end mill holders found in CNC machining centers and manual knee mills. The regular length designation makes it appropriate for general-purpose slotting, profiling, and peripheral milling where extended reach is not required.

Key Features

• Solid micrograin carbide construction for hardness and edge retention
• AlTiN coating for elevated heat resistance and extended tool life
• 3-flute design with 30-degree right-hand spiral helix for efficient chip evacuation
• Centercutting geometry allows plunge entry into workpieces
• Straight cylindrical shank fits standard collet chucks and end mill holders
• Tight mill diameter tolerance of +0.0001 / -0.002 inch for precise fitment

Compatibility

Designed for use with workpiece materials in ISO groups H, K, M, N, P, and S, including hardened steels, cast iron, stainless steels, nonferrous metals, general steels, and high-temperature alloys. Fits standard 5/16 inch bore collets and end mill holders.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and the tool holder is clean and free of debris before mounting. Seat the shank fully in the collet or holder and tighten to the holder manufacturer's specified torque procedure. Verify runout with a dial indicator before beginning a production cut to protect both the tool and the workpiece.
