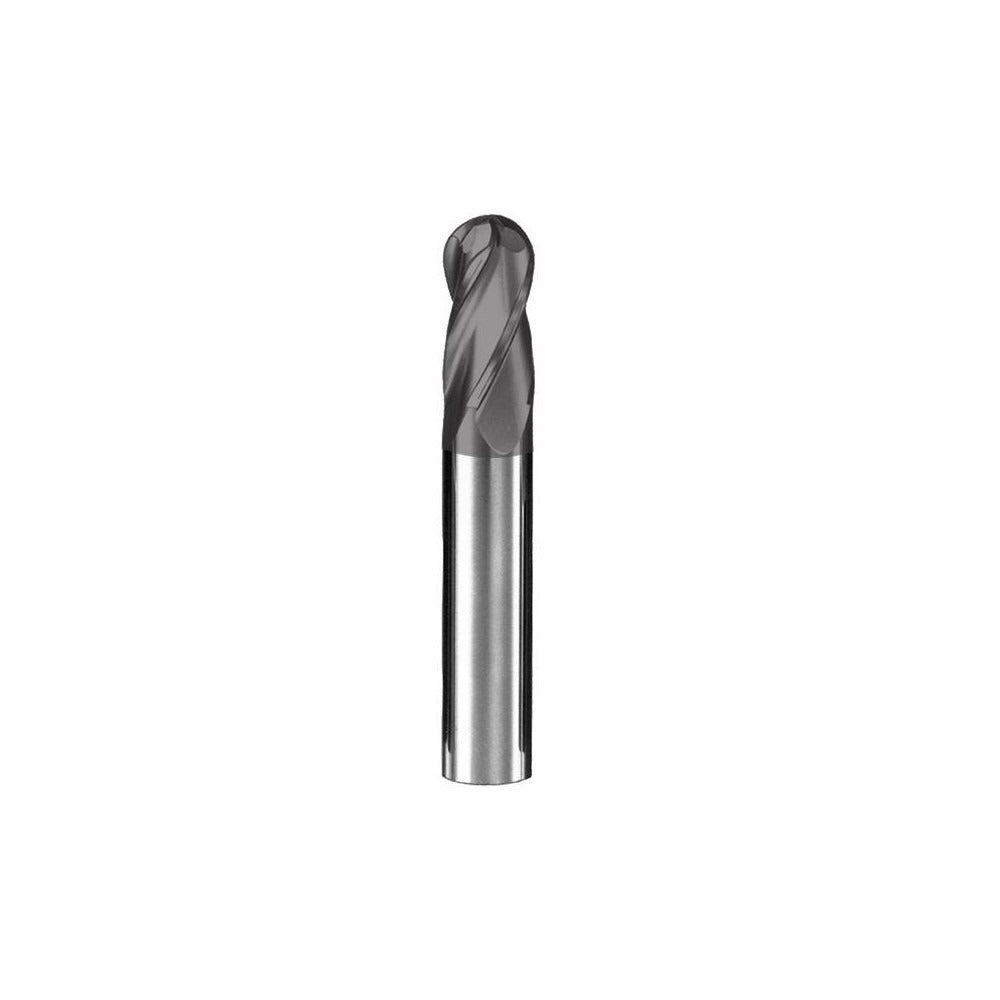

Sgs 30034 Ball End Mill 0.0625 in 4 Flute Solid Carbide

Product Description

The SGS 30034 is a single-end, 4-flute ball end mill designed for precision milling in a wide range of materials. Built from micrograin solid carbide and coated with AlTiN, it delivers heat resistance and edge retention in demanding cutting applications. The 0.0625-inch diameter with a 0.1875-inch length of cut makes it well-suited for fine detail work, slotting, and contouring in tight geometries. The 30-degree right-hand spiral flute geometry promotes efficient chip evacuation. This tool is intended for use by machinists and tooling professionals working on CNC machining centers and manual mills.

This end mill is configured for use in precision metalworking and multi-material machining environments. It carries material compatibility codes for hardened steels, cast irons, stainless steels, non-ferrous metals, carbon steels, and high-temperature alloys. The variable index design helps reduce chatter and improve surface finish. With a 1/8-inch shank diameter and 1.5-inch overall length, it fits standard collet and toolholder setups common in both job-shop and production environments.

Key Features

• Micrograin solid carbide construction for rigidity and wear resistance
• AlTiN coating provides thermal protection in high-speed and dry cutting conditions
• 4-flute, right-hand spiral configuration with 30-degree helix angle
• Variable index design reduces harmonic vibration during cutting
• Single-end ball nose profile for contouring and 3D surface work
• Mill diameter tolerance of +0.000 to -0.002 inches for consistent fit and finish

Compatibility

Designed for use with materials in workpiece categories H, K, M, N, P, and S — covering hardened steels, cast irons, stainless steels, non-ferrous metals, carbon and alloy steels, and high-temperature superalloys. Fits standard 1/8-inch collets and toolholders.

Installation Notes

Installation and operation should be performed by a qualified machinist familiar with CNC or manual milling equipment. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Verify collet size and runout before use to protect both the tool and the workpiece. Follow the toolholder manufacturer guidelines for clamping torque and projection length.
