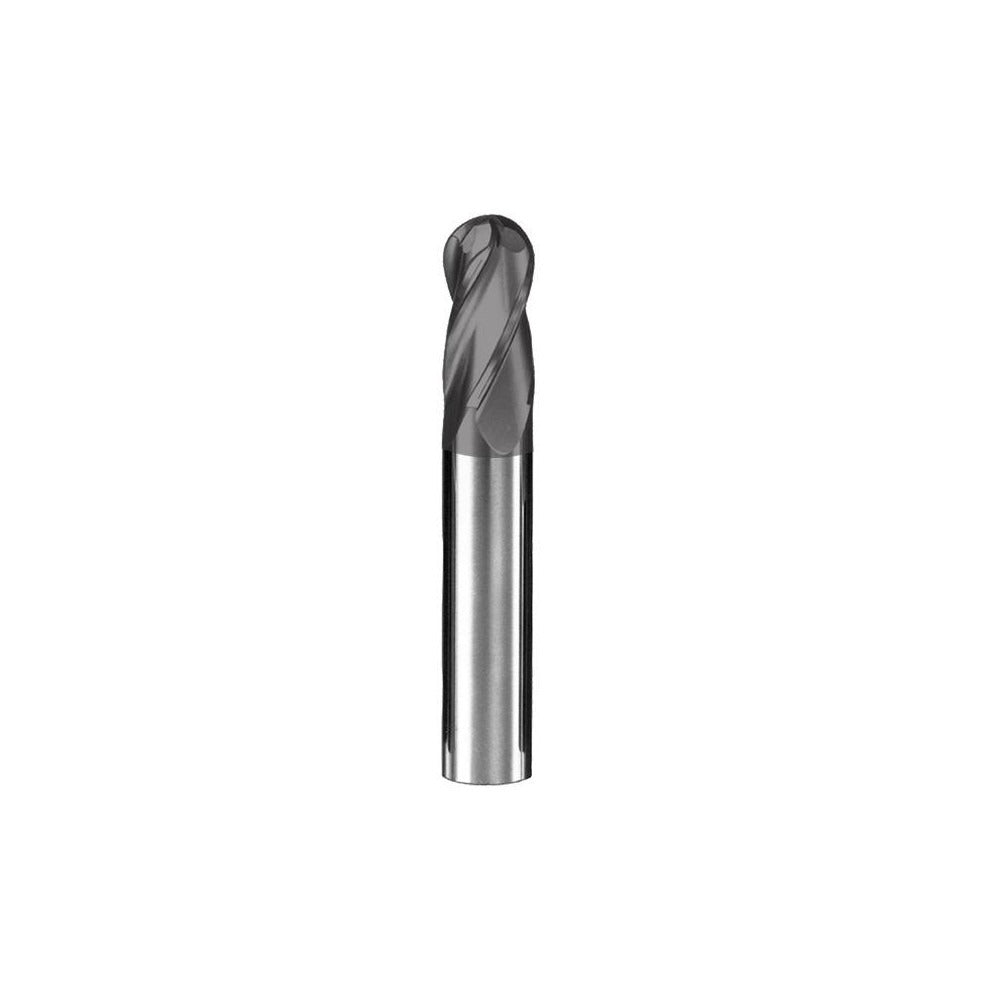

Sgs 30033 Ball End Mill 0.0469 in 4 Flute Solid Carbide

Product Description

The SGS 30033 is a single-end ball end mill designed for precision milling in demanding metalworking applications. Built from micrograin solid carbide and coated with AlTiN for heat and wear resistance, it carries a 0.0469-inch diameter with a 0.1094-inch length of cut and a 30-degree helix angle. The four-flute geometry with a variable index promotes smooth chip evacuation and reduces chatter during tight-tolerance passes. At 1.5 inches overall length with a 1/8-inch shank, this tool fits standard collet chucks and is suited for CNC machining centers running high-speed finishing work on hardened and exotic materials.

This end mill is intended for professional machinists and CNC operators working in job shops, tool rooms, and production environments. The 3/64-inch diameter profile makes it well suited for fine-detail profiling, contoured surface work, and tight-radius pocket finishing. The AlTiN coating extends tool life when cutting ferrous and high-temp alloy materials at elevated spindle speeds. Right-hand cutting and right-hand flute direction are standard for conventional CNC setups.

Key Features

• Micrograin solid carbide construction for rigidity and edge retention in tough materials
• AlTiN coating provides thermal barrier and oxidation resistance at high cutting temperatures
• Four-flute, variable index design reduces harmonics and chatter during finishing passes
• 30-degree helix angle promotes efficient chip flow on non-ferrous and ferrous workpieces
• Single-end configuration with a 1/8-inch shank diameter for standard collet compatibility
• Regular length type at 1.5 inches OAL for use in close-clearance and deep-feature applications

Compatibility

Designed for use in CNC machining centers and manual mills accepting a 1/8-inch collet or end mill holder. Primary workpiece material codes H, K, M, N, P, and S cover hardened steels, cast iron, stainless steel, non-ferrous alloys, long-chipping materials, and high-temperature alloys.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Power down and lock out the spindle before loading or changing tooling. Seat the shank fully into the collet or holder to the specified gauge depth and torque the retention nut per the toolholder manufacturer guidelines. Verify runout at the tool tip with a dial indicator before beginning a production run, as runout is especially critical at sub-1/8-inch diameters.
