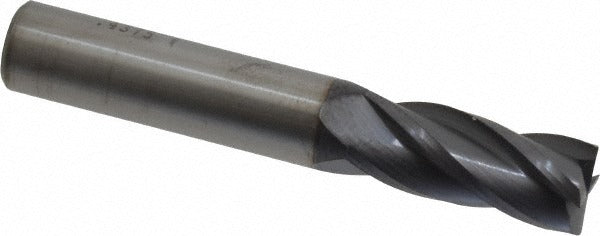

Sgs 30018 Square End Mill 7/16 Inch 4 Flute Solid Carbide

Product Description

The SGS 30018 is a 4-flute solid carbide square end mill designed for high-performance metal removal in precision machining applications. It features a 7/16 inch cutting diameter with a 1 inch length of cut and an overall length of 2-3/4 inches. The AlTiN coating provides heat and wear resistance suited for dry or semi-dry cutting at elevated speeds. The micrograin carbide substrate delivers hardness and edge retention. A variable index design reduces harmonic chatter during cuts, improving surface finish and tool life. Licensed machinists and CNC operators working in job shops, tool rooms, and production environments are the primary users of this end mill.

This end mill is built for milling ferrous and non-ferrous materials across multiple workpiece material categories including cast iron, non-ferrous metals, stainless steel, heat-resistant superalloys, steel, and titanium alloys, corresponding to material codes H, K, M, N, P, and S. The straight-cylindrical shank seats directly into standard collet chucks and end mill holders. The centercutting geometry allows plunge entry into workpieces, enabling slot milling and pocket interpolation without a pre-drilled entry hole. This is a Series 1 regular-length tool suited for general-purpose work where reach and rigidity are balanced.

Key Features

• 7/16 inch cutting diameter with mill diameter tolerance of plus 0.000 / minus 0.002 inches for precise fitment
• AlTiN coating for elevated-temperature hardness and oxidation resistance
• Micrograin solid carbide substrate for superior edge retention
• Variable index flute spacing reduces chatter and improves surface finish
• Centercutting design allows direct plunge entry for slot and pocket milling
• Right-hand cut and right-hand spiral flutes at a 30-degree helix angle

Compatibility

Designed for use in standard collet chucks and end mill holders accepting a 7/16 inch straight-cylindrical shank. Compatible with CNC machining centers and manual mills where Series 1 regular-length solid carbide end mills are specified.

Installation Notes

Installation is performed by a machinist or CNC operator. Power down and lock out the spindle before inserting or removing the tool from the holder. Seat the shank fully into the collet or holder and torque to the tool holder manufacturer specification. Inspect the cutting edges for chipping before each use and do not run a damaged end mill.
