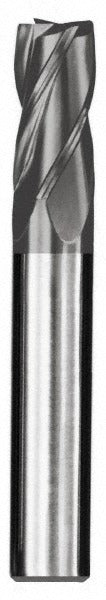

Sgs 30015 Square End Mill 25/64 in 4 Flute Solid Carbide

Product Description

The SGS 30015 is a solid carbide square end mill designed for precision metal removal in CNC machining and manual milling operations. It features a 25/64 inch (0.3906 inch) cutting diameter, a 1 inch length of cut, and a 7/16 inch straight-cylindrical shank. The four-flute geometry and 30-degree helix angle promote efficient chip evacuation and surface finish quality. An AlTiN finish increases surface hardness and thermal resistance, extending tool life in demanding cutting conditions. Machining professionals and tool-and-die shops use this end mill for slotting, profiling, and peripheral milling across a broad range of workpiece materials.

The SGS 30015 is suited for right-hand cutting and right-hand spiral flute applications in ferrous and non-ferrous materials. The variable index geometry reduces harmonic vibration during high-speed passes. It is centercutting, allowing plunge entry directly into the workpiece. Typical applications include finish milling of steel, stainless steel, cast iron, aluminum alloys, and high-temperature alloys. The regular-length, straight-cylindrical shank fits standard ER and end mill holders commonly found in vertical machining centers and knee mills.

Key Features

• Solid carbide micrograin substrate for rigidity and wear resistance
• AlTiN coating for elevated thermal and oxidation resistance in dry and semi-dry cutting
• Four flutes with 30-degree helix angle for balanced chip load and smooth finish
• Variable index flute spacing reduces chatter and harmonic vibration
• Centercutting design allows direct plunge milling without pre-drilling
• Right-hand cut, right-hand flute spiral configuration for standard CNC and manual mill setups

Compatibility

Designed as an OEM-style solid carbide square end mill compatible with standard ER collet chucks and end mill holders accepting a 7/16 inch straight-cylindrical shank.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and locked out before inserting or removing the tool. Seat the shank to the recommended gauge-line depth in the tool holder and torque the collet nut or set screw to the holder manufacturer specification. Inspect the cutting edges for chipping before each use and do not exceed the tool manufacturer recommended speeds and feeds for the workpiece material.
