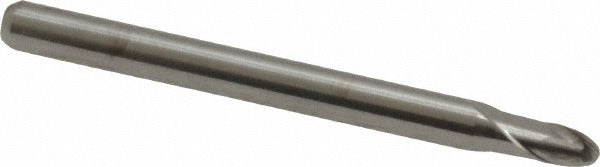

Sgs 00734 Ball End Mill 0.1 in 2 Flute Solid Carbide

Product Description

The SGS 00734 is a solid carbide ball end mill designed for precision milling of contoured surfaces, slots, and profiling operations in ferrous and non-ferrous materials. It features a 0.1 inch cutting diameter, a 0.15 inch length of cut, and a 2-flute spiral geometry with a 30-degree helix angle. The stub-length configuration provides added rigidity, reducing deflection in tight-tolerance applications. Micrograin carbide construction delivers hardness and wear resistance suited for high-speed finishing passes. This end mill is installed by machinists and toolroom technicians on CNC machining centers and manual mills.

The SGS 00734 is well suited for 3D contouring, die and mold work, and fine detail milling where a small-diameter ball nose profile is required. The right-hand cut and right-hand flute direction make it compatible with standard spindle rotation on vertical and horizontal milling machines. Its uncoated finish allows use across a broad range of workpiece materials, and the single-end design is typical for precision tooling applications in production and prototype environments.

Key Features

• 0.1 inch ball nose diameter for fine contour and profiling cuts
• Solid micrograin carbide construction for hardness and wear resistance
• 30-degree helix angle with spiral flute geometry for efficient chip evacuation
• Stub length design increases rigidity and reduces deflection
• Uncoated finish suitable for a wide range of workpiece materials
• Right-hand cut, right-hand flute, single-end configuration

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide ball end mill for CNC and manual milling machines accepting a 0.125 inch (1/8 inch) straight shank.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Seat the 0.125 inch shank securely in a collet or tool holder and verify runout with a dial indicator before beginning a cut. Follow the end mill manufacturer feed and speed recommendations for the workpiece material being machined.
