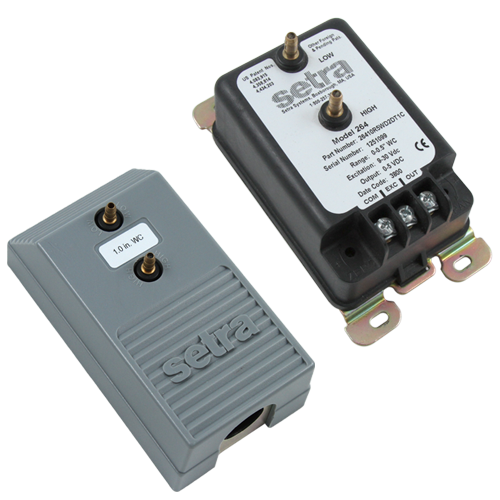

Product Information
A output signal
Voltage output signal optional
10 psig (68.70 k
Pa) overpressure
Three-year unconditional warranty
1% accuracy standard, 0.4% and 0.25% NIST certification optional
Reverse wiring protected
Stainless steel diaphragm
Ideal for air and non-conducting gases
Specifications:
Manufacturer Part Number2641R25WB2DT1C
Item Number2641R25WB2DT1C
Manufacturer
Setra
Product Series264
Family Series
Setra HVAC Sensors, 264 Series
Output0~5 VDC
Process Connection3/16 in Dual Barb Fitting
Sensor Style
Differential
Max Pressure0.25 in WC
Supply Voltage9~30 VDC
Electrical Connection
Screw Terminal
Temperature Range0 to 175 Degrees F
Approvals
CE
Ro
HS Compliant
Yes
Net Weight0.635 lbs
Gross Weight0.715 lbs
