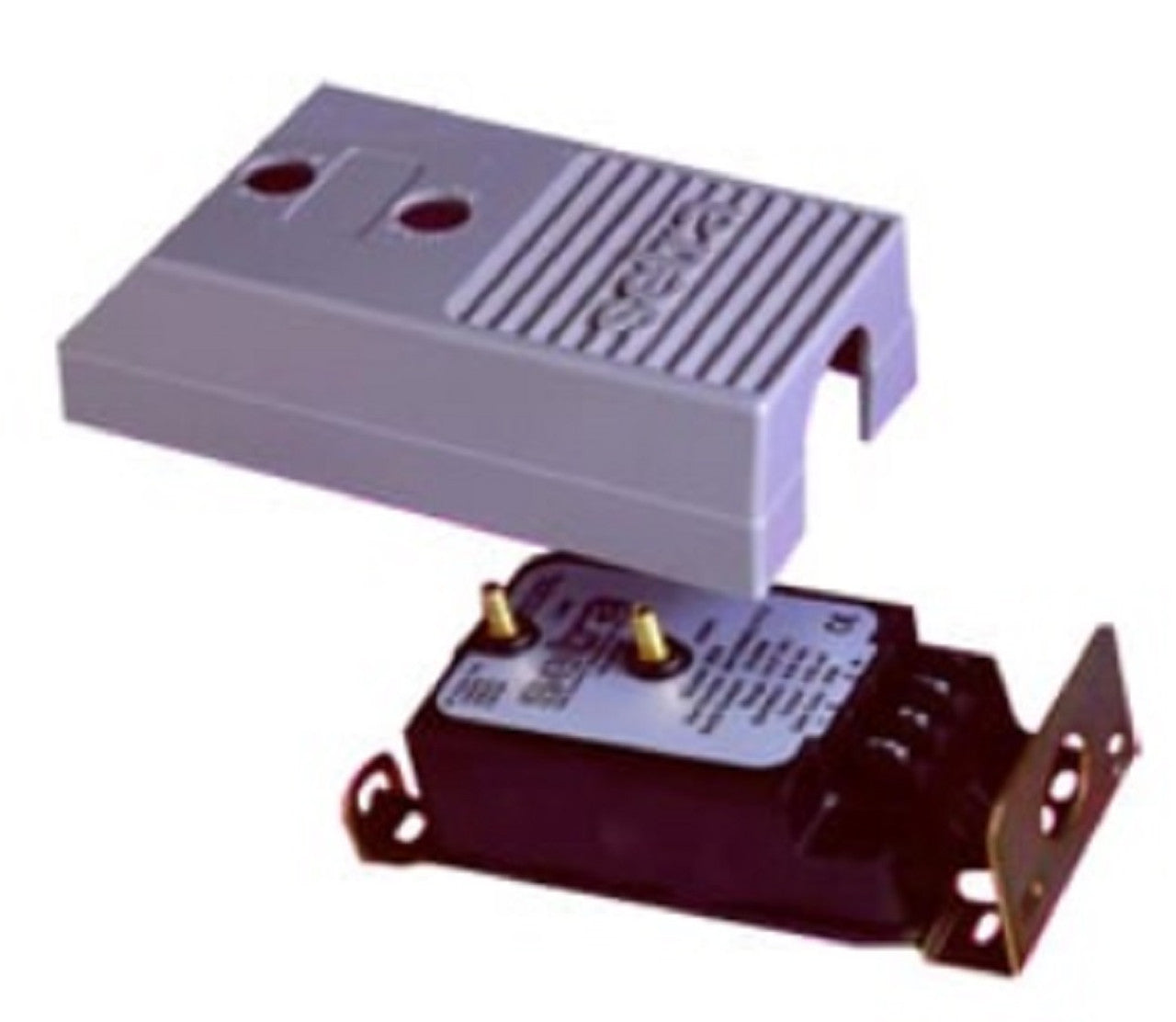

Setra Systems 2641R05WB2DT1C Differential Pressure Transmitter

Product Description

The Setra Systems 2641R05WB2DT1C is a differential pressure transmitter that measures low air pressure. It utilizes a tensioned stainless steel diaphragm to detect both negative and positive differential pressure. This device is capable of handling an overpressure of ten psig (68.95 kPa) and includes exposed terminals for easy wiring.

• Measures differential pressure accurately.
• Features a stainless steel diaphragm.
• Tolerates overpressure up to ten psig (68.95 kPa).

Product Highlights

This transmitter is ideal for applications requiring precise monitoring of air pressure changes.

Product Information

Standard Information

• Country of Origin: US
• UPC: Not available

Technical Specifications

• Accuracy: 1%
• Direction: Bi-Directional
• Measurement: Inches of Water Column
• Media Compatibility: Liquid/Gas
• Mounting Type: Wall
• Output: 0 - 5 VDC
• Range: ±1 in WC
• Type: Fixed
• Input Voltage: 9 to 30V DC
• Signal Output: 0-5V @ 5KO, 4-20mA @ 750 O (loop powered)
• Sensor Type: Capacitive
• Adjustments: Zero & Span trim POTs
• Normal Measurement Range: (0 to 100 in WC) or ±(0.1 to 25 in WC)
• Max Operating Pressure: (Proof) -25 in WC to +100 in WC
• Operating Temperature: 0 to 175°F (-18 to 79°C)
• Operating Humidity: 10 to 95% Non-condensing
• Wetted Parts: Stainless steel
• Media Compatibility Inert: dry air
• Process Connection: ¼ in OD brass, for ¼ in OD tubing
• Wiring: 2-(4-20mA), 3-(Volts)
• Mounting: 2 or 4, #10 screws
• Enclosure Rating: NEMA1 equivalent, plastic UL94-V-0
• Dimensions: 5.06 W x 2.75 H x 2.38 D (12.9 x 7 x 6 cm)
• Weight: 0.5 lb (0.25 Kg)
• Certifications: CE
• Warranty: 3 years
