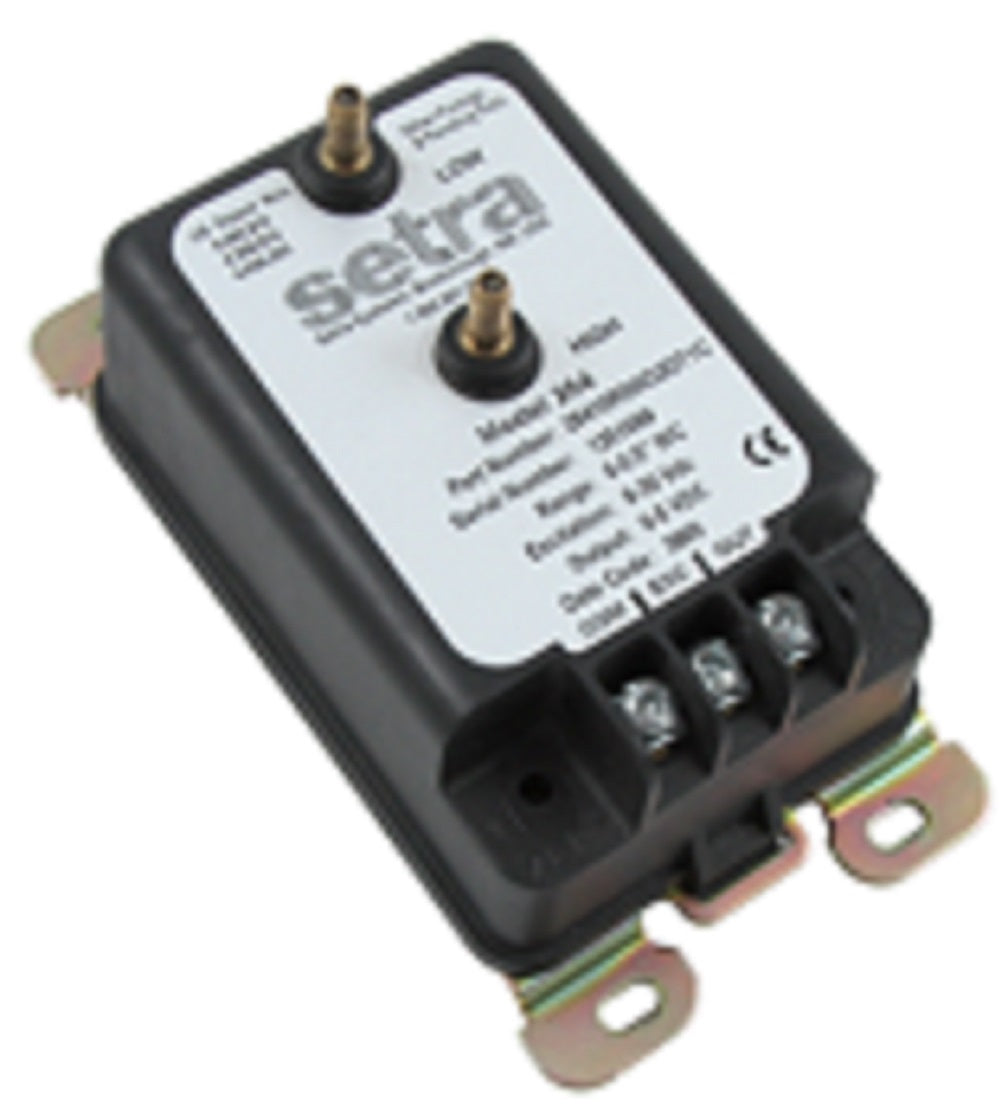

Setra Systems 26410R1WD11T1E Differential Pressure Transducer 0-0.1 in. W.C. Terminal Strip

Product Description

Setra Systems 26410R1WD11T1E is a differential pressure transducer that measures low air differential pressure with a range of 0–0.1 in. W.C. and provides a 4–20 mA scalable analog output via a terminal strip. The device converts sensed differential pressure into a current signal for integration with controllers or data acquisition systems. Specified accuracy is ±0.4% full scale.

• Pressure range: 0–0.1 in. W.C. for low differential pressure measurement
• 4–20 mA output delivered through a terminal strip for system integration
• Accuracy ±0.4% full scale

Product Highlights

Low-range differential pressure measurement; 4–20 mA output; ±0.4% FS accuracy

Product Information

Standard Information

• Brand: SETRA SYSTEMS
• Manufacturer Part Number: 26410R1WD11T1E
• Country of Origin: US

Technical Specifications

• Manufacturer: Setra Systems
• Model / MPN: 26410R1WD11T1E
• Series: 264
• Product Type: Differential pressure transducer
• Condition: Used
• Pressure Range: 0 - 0.1 in. W.C.
• Pressure Units: in. W.C.
• Output Signal: 4-20 mA
• Electrical Connection: Terminal strip (screw terminal)
• Accuracy: ±0.4% FS
• Process Connection: 5/16 in. OD tubing barbed
• Mounting Type: Wall mount
• Enclosure Rating: NEMA 1 (indoor)
• External Load: 0 - 800 ohms
• Operating Temperature: 0 to 175 °F (-18 to 80 °C)
• Long-Term Stability: 0.5% FS per year
• Compliance: CE compliant
• Country of Origin: US
• Datasheet: https://www.hvacusa.com/media/datasheetfiles/SetraModel264.pdf
• Output Impedance: 100 ohms
