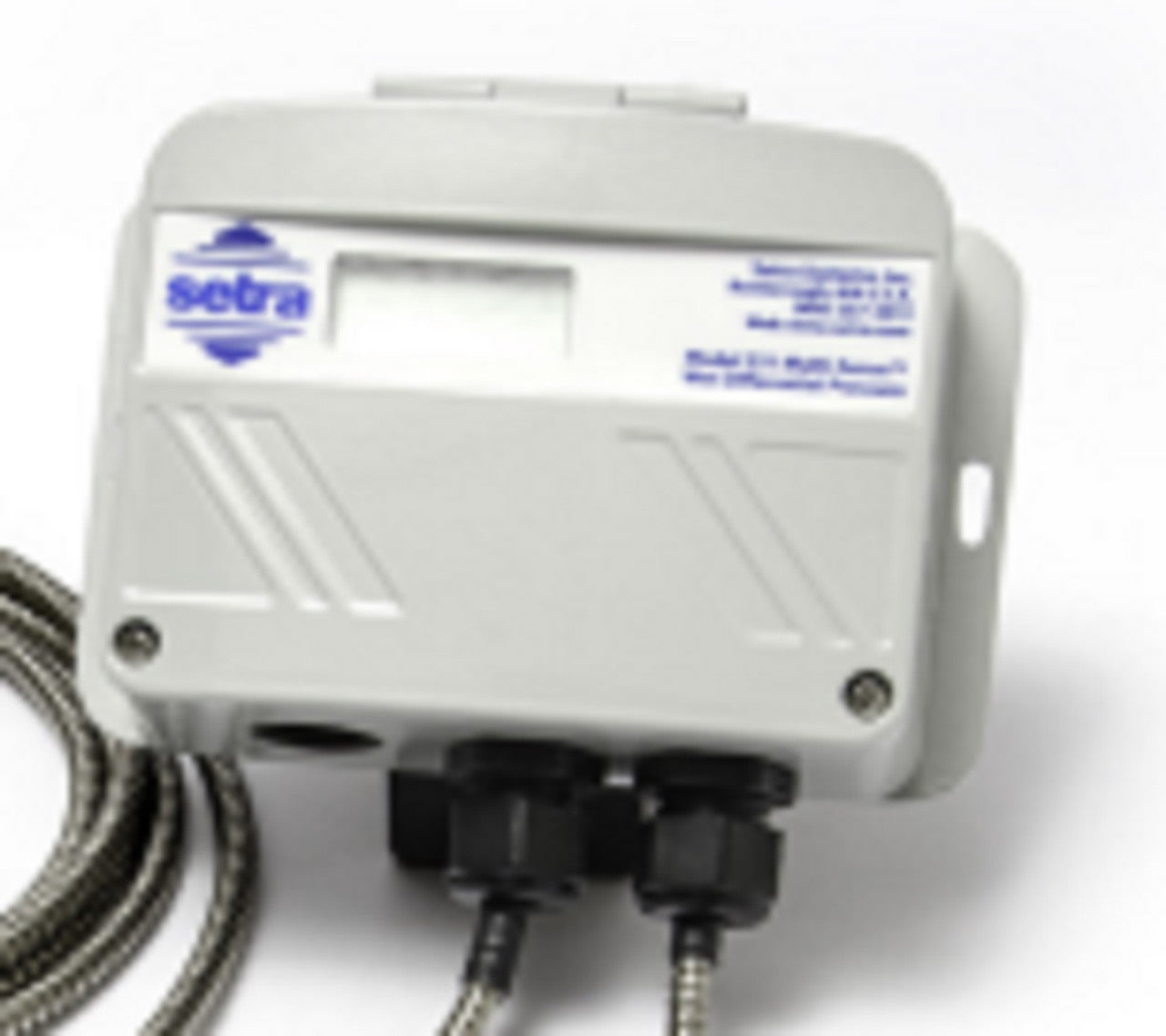

Setra Systems 231GMS33VD Differential Pressure Transmitter

Product Description

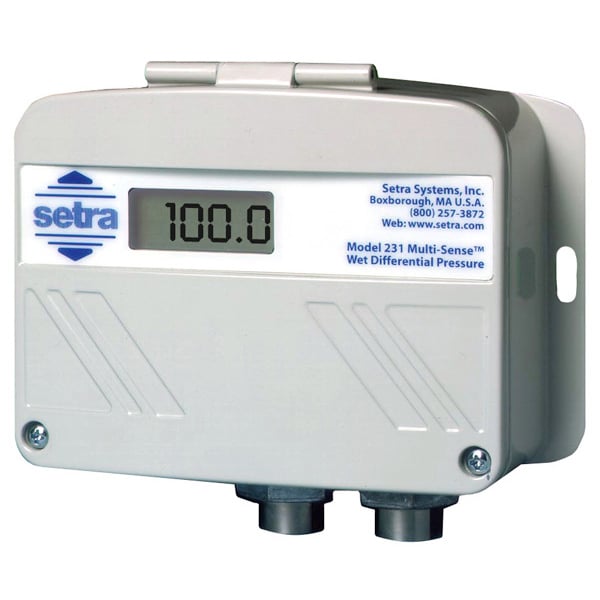

The Setra Systems 231GMS33VD is a differential pressure transmitter suitable for HVAC and building automation systems. It has field-selectable pressure ranges and analog outputs for versatile use. The transmitter comes in a NEMA 4 rated enclosure which enhances its durability. It can also include an optional LCD display and a hinged cover for easy access. Additionally, it can be equipped with a three or five valve machined brass manifold that simplifies installation and maintenance work.

• Field-selectable pressure ranges and outputs.
• NEMA 4 rated enclosure with optional LCD display.
• Field accessible push-button zero and remote zero adjustment capabilities.

Product Highlights

This device is designed to monitor pressure effectively across various applications. The push-button zero and remote zero features allow quick adjustments in the field.

Product Information

Standard Information

• Brand: Setra Systems
• MPN: 231GMS33VD

Technical Specifications

• Accuracy: 1%, 2%
• Media Compatibility: Liquids and gases compatible with 17-4 stainless steel
• Output: 0 - 5 VDC
• Pressure Range: ±500 psi
• Display: LCD
• Operating Temperature: -4 to 185 degrees Fahrenheit
• Enclosure Rating: NEMA 4
• Weight: 1.5 lb
• Dimensions: 5.1 inches wide x 6.0 inches high x 2.0 inches deep
