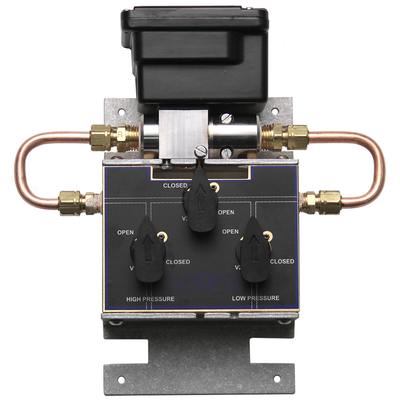

Setra Systems 2301025PD2F11B Wet/Wet Differential Pressure Transducer
The Model 230 from Setra Systems is the highest accuracy solution for monitoring differential pressure in wet-to-wet applications. Its single diaphragm design enables a true wet-to-wet differential pressure measurement with superior 0.25% FS accuracy. The stainless steel capacitive sensor provides a highly accurate, linear analog output proportional to pressure over a wide temperature range.
Features:
- Only true wet-to-wet differential pressure transducer on the market
- 0.25% FS Accuracy
- Available to 1 PSID with 350 PSI Line Pressure
- No Liquid Fill Diaphragm
- NEMA 4 Rated Housing
- Low Line Pressure Effect
- Fast Response Time
- Gas & Liquid Compatible
- CE & RoHS Compliant
Specifications:
- Manufacturer Part Number: 2301025PD2F11B
- Item Number: 2301025PD2F11B
- Manufacturer: Setra
- Product Series: 230
- Family Series: Setra HVAC Sensors, 230 Series
- Pressure Range: 0~25 psi
- Output: 4~20 mA
- Process Connection: 1/8-18 NPT Internal
- Sensor Style: Differential
- Max Pressure: 25 psi
- Supply Voltage: 9
