Product Information

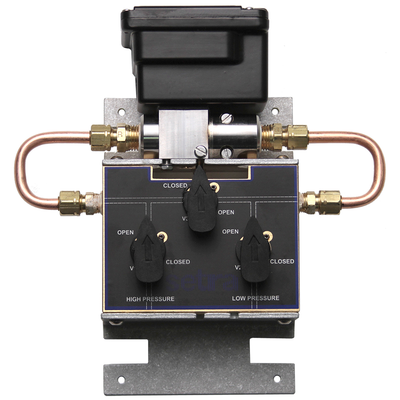

The Setra Systems 2301100PD2F11B 0/100# 1/4\\\\\\" #Transducer;4-20mA, the highest accuracy solution for monitoring differential pressure in wet-to-wet applications. This stainless steel capacitive sensor provides a highly accurate, linear analog output proportional to pressure over a wide temperature range. It is offered with an optional 3 or 5 valve machined brass manifold for ease of installation and maintenance. Here are the features and specifications:
- Only true wet-to-wet differential pressure transducer on the market
- 0.25% FS Accuracy
- Available to 1 PSID with 350 PSI Line Pressure
- No Liquid Fill Diaphragm
- NEMA 4 Rated Housing
- Low Line Pressure Effect
- Fast Response Time
- Gas & Liquid Compatible
- CE & RoHS Compliant
- Manufacturer Part Number: 2301100PD2F11B
- Item Number: 2301100PD2F11B
- Manufacturer: Setra
- Product Series: 230
- Family Series: Setra HVAC Sensors, 230 Series
- Pressure Range: 0~100 psi
- Output: 4~20 mA
- Process Connection: 1/8-18 NPT Internal
- Sensor Style: Differential
- Max Pressure: 100 psi
- Supply Voltage: 9~30 VDC
- Electrical Connection: Terminal Block
- NEMA Rating: NEMA 4
- IP Rating: IP65
- Temperature Range: 0 to 175 Degrees F
- Approvals: CE
