Product Information

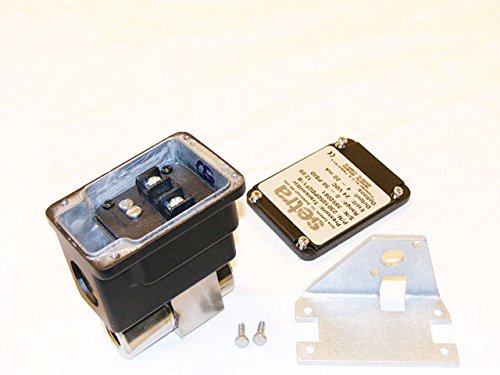

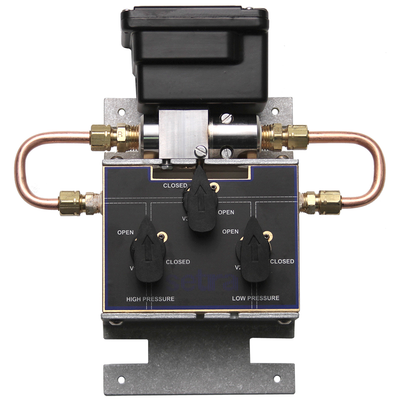

The Setra Systems 2301050PD2F11B 0-50#Transducer 4-20out is the highest accuracy solution for monitoring differential pressure in wet-to-wet applications. This transducer features a single diaphragm design for true wet-to-wet differential pressure measurement with superior 0.25% FS accuracy. It also includes a stainless steel capacitive sensor for a highly accurate, linear analog output proportional to pressure over a wide temperature range.
- Only true wet-to-wet differential pressure transducer on the market
- 0.25% FS Accuracy
- Available to 1 PSID with 350 PSI Line Pressure
- No Liquid Fill Diaphragm
- NEMA 4 Rated Housing
Manufacturer Part Number: 2301050PD2F11B
Item Number: 2301050PD2F11B
Manufacturer: Setra
Product Series: 230
Family Series: Setra HVAC Sensors, 230 Series
Pressure Range: 0~50 psi
Output: 4~20 mA
Process Connection: 1/8-18 NPT Internal
Sensor Style: Differential
Max Pressure: 50 psi
Supply Voltage: 9~30 VDC
Electrical Connection: Terminal Block
NEMA Rating: NEMA 4
IP Rating: IP65
Temperature Range: 0 to 175 Degrees F
Approvals: CE
RoHS Compliant: Yes
Net Weight: 0.98 lbs
Gross Weight: 1.24 lbs
