Setra 26412R5WB11T1G HVAC Sensors +/-2.5 in. WC

Product Description

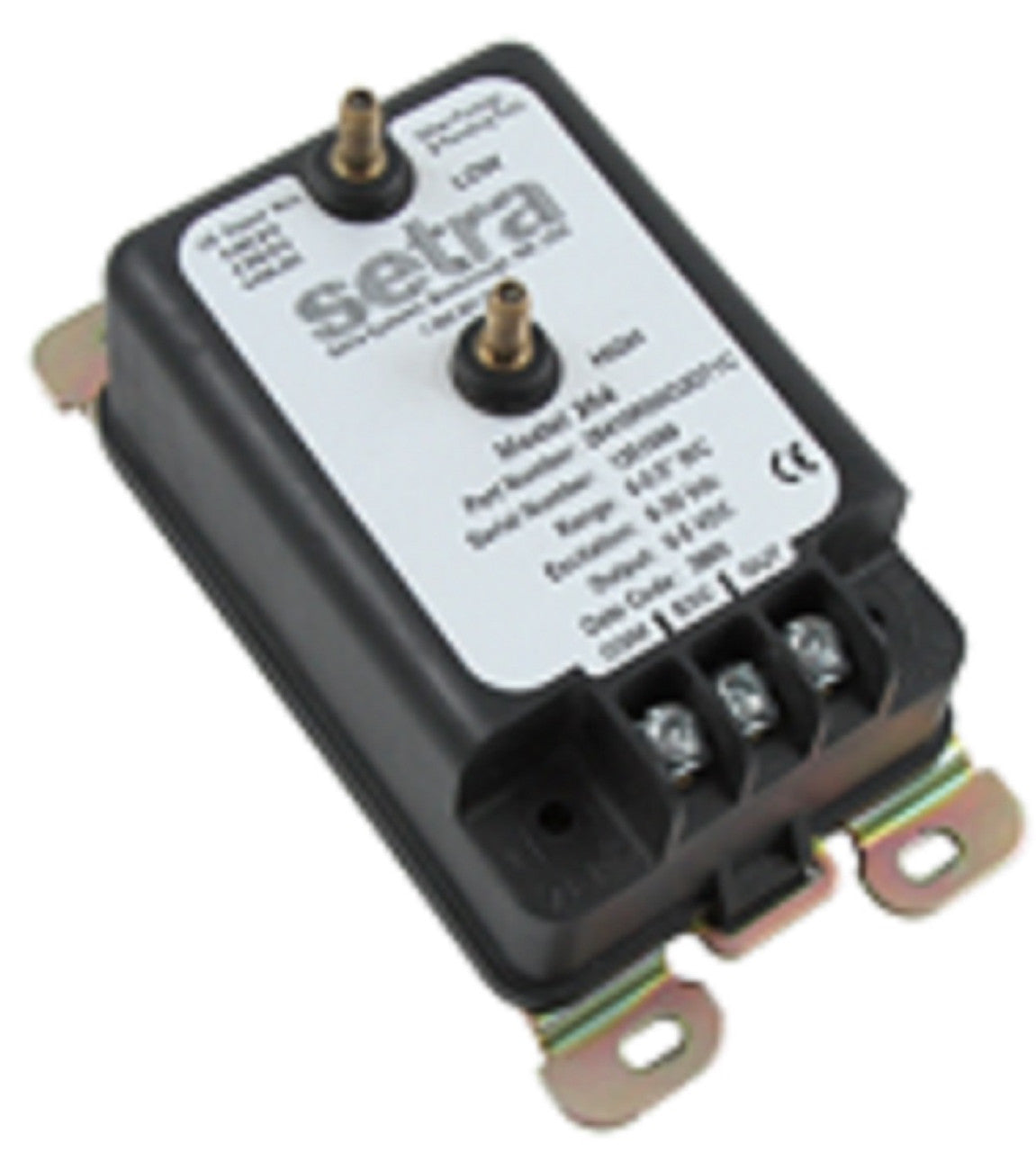

The Setra Systems 26412R5WB11T1G is designed to measure very low differential pressure. This transducer operates within a pressure range of plus or minus 2.5 inches of water column and provides an output of 4-20 mA. It connects via a terminal strip and has a stated accuracy of plus or minus one percent full scale. Ideal for HVAC applications, it enhances system performance by ensuring accurate pressure readings.

• Very low differential pressure capability
• Pressure range: -2.5 to 2.5 in WC
• Output: 4-20 mA

Product Highlights

Product Information

Standard Information

• Brand: Setra
• MPN: 26412R5WB11T1G

Technical Specifications

• Manufacturer Part Number: 26412R5WB11T1G
• Product Series: 264
• Pressure Range: -2.5 to 2.5 in WC
• Output: 4-20 mA
• Connection: 3/16 in Dual Barb Fitting
• Maximum Pressure: 2.5 in WC
• Voltage: 24 VDC
• Operating Temperature: 0-175 °F
• Accuracy: 1%
• Electrical Connection: Screw Terminal
• Approvals: CE
