Setra Systems 2561500PG2M11 Model 256 Industrial Pressure Transducer - Rugged - 0-500 psig

Product Description

The Setra Systems Model 256 Industrial Pressure Transducer, with MPN 2561500PG2M11, offers a durable solution for measuring gauge pressure. It is designed to work in NEMA4/IP65 environments, ensuring reliability under tough conditions. This sensor features a robust die-cast aluminum enclosure and includes advanced capacitive technology, which makes it resilient against shock, vibration, temperature, and EMI/RFI interference.

• Compact size for easy installation
• Compatible with various gases and liquids
• Low cost and high accuracy

Product Highlights

The Model 256 is suitable for diverse applications, including process control, chemical processing, and agricultural irrigation systems. It operates effectively even with corrosive materials due to all-stainless steel wetted parts.

Product Information

Standard Information

• Brand: Setra Systems
• MPN: 2561500PG2M11
• Model: 256

Technical Specifications

• Pressure Range: 0-500 psig
• Output Signal: 4-20 mA
• Connection Type: 1/4 NPT Male

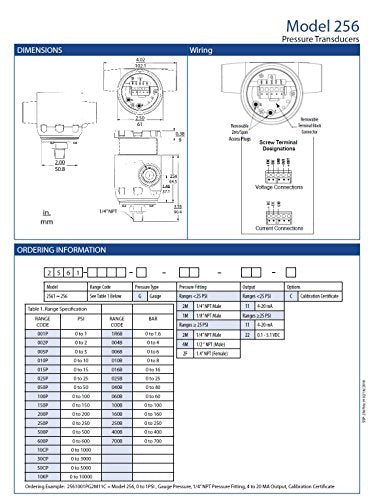

• Dimensions: 3.6 inches high, 4.0 inches wide
• Weight: 1.00089748 lbs
• Power Supply: Low cost, unregulated
• Conformance: Meets CE standards
• Applications: Natural gas monitoring, grain processing, industrial pressure monitoring
