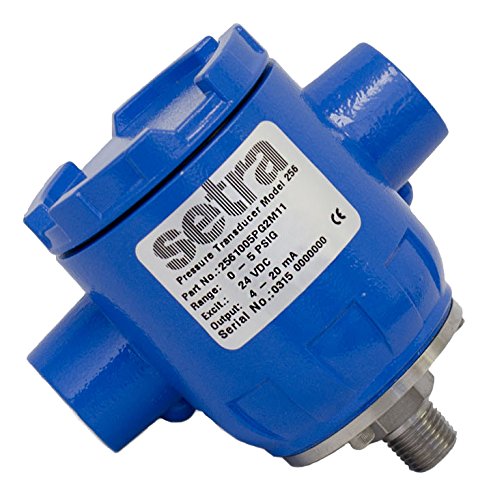

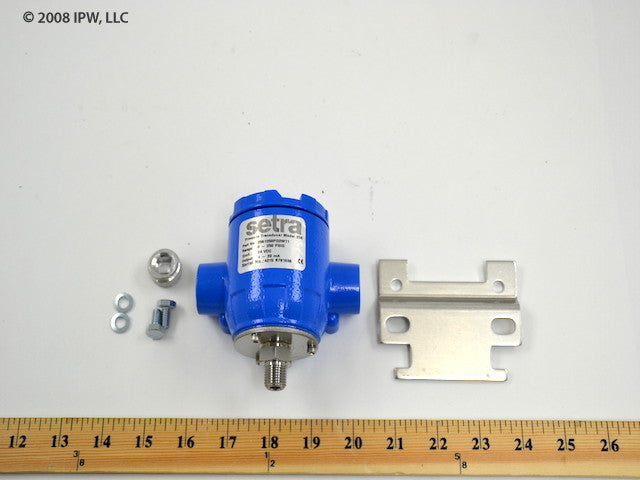

Setra 2561250PG2M11 Industrial Pressure Transducer Gauge Pressure 0-250 psig

Product Description

The Setra 2561250PG2M11 Industrial Pressure Transducer offers robust and reliable performance, tailored for HVAC professionals and engineered environments. This Setra Systems product is designed with precision, featuring a rugged die-cast aluminum enclosure and capacitive design for superior resistance to environmental impacts such as shock, vibration, and temperature variations.

• Exceptionally rugged build to withstand harsh conditions.
• NEMA4/IP65 certified for high environmental resilience.
• High accuracy pressure measurements with easy zero and span adjustment.

Product Highlights

Equipped with a removable cover, this transducer offers easy internal access for quick setup, complete with internal threaded conduit ports simplifying wiring processes. It operates efficiently across a broad temperature range, offering versatility across various applications, from industrial pressure monitoring to agricultural systems.

Product Information

Standard Information

• Brand: Setra Systems
• MPN: 2561250PG2M11

Technical Specifications

• Pressure Range: 0 to 250 psig
• Connection Size: 1/4 inch NPT Male
• Output: 4-20 mA
• Weight: 2 lbs
• Dimensions: 3.6 inches high by 4.0 inches wide
• Temperature operational range: wide range
• Material: Stainless Steel (wetted parts), Die-cast Aluminum (housing)
