Service Metal sc302.0 Threaded Flange 2 in 300 Class

Product Description

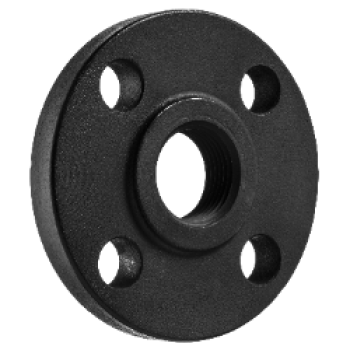

The SERVICE METAL sc302.0 is a 2-inch, Class 300 carbon steel raised face threaded flange designed for use in industrial and commercial piping systems. This import flange features a threaded connection, allowing installation without welding, and carries a 300-pound pressure rating suitable for moderate- to high-pressure service. The raised face seating surface promotes a reliable, leak-resistant seal when paired with the appropriate gasket and mating flange. At 7 pounds, this is a solid, full-weight forged-style fitting built for demanding service environments. Licensed pipefitters and plumbing contractors are the primary installers.

This flange is suited for use in process piping, industrial fluid systems, and commercial plumbing applications where a threaded connection is preferred or required. The 2-inch bore fits standard 2-inch nominal pipe, and the 6.5-inch outer diameter is consistent with ASME B16.5 Class 300 dimensional standards. Typical applications include pipe assemblies that require periodic disassembly for maintenance or inspection, as threaded flanges allow removal without cutting pipe.

Key Features

• Class 300 pressure rating supports moderate- to high-pressure piping service
• Raised face design provides an effective sealing surface for standard spiral-wound or ring gaskets
• Threaded connection eliminates the need for field welding during installation
• Carbon steel construction offers strength and durability in industrial environments
• 6.5-inch outer diameter consistent with standard Class 300 flange dimensions
• 7-pound per-unit weight confirms full-material, heavy-duty construction

Compatibility

Designed as an OEM-style replacement or new-installation threaded flange for 2-inch nominal pipe in Class 300 carbon steel raised face flange applications.

Installation Notes

Installation should be performed by a licensed pipefitter or journeyman plumber in accordance with applicable codes including ASME B31.3 or ASME B31.1 for process and power piping. Isolate and depressurize the line completely before removing any existing flange or beginning installation. Thread the flange onto the pipe to the appropriate engagement depth and use a compatible raised face gasket and properly torqued fasteners when mating to a companion flange. Inspect threads and flange face for damage before assembly.

Technical Specifications

• Fitting Size: 2 inches
• Outer Diameter: 6.5 inches
• Pressure Rating: 300 lbs
• Connection Type: Threaded
• Flange Face Type: Raised Face
• Fitting Material: Carbon Steel
• Item Weight: 7 pounds
• Domestic or Import: Import

Standard Information

• Brand: SERVICE METAL
• Manufacturer Part Number: sc302.0
