SEPCO T8ACG 3IN AL T COND BODY

Product Description

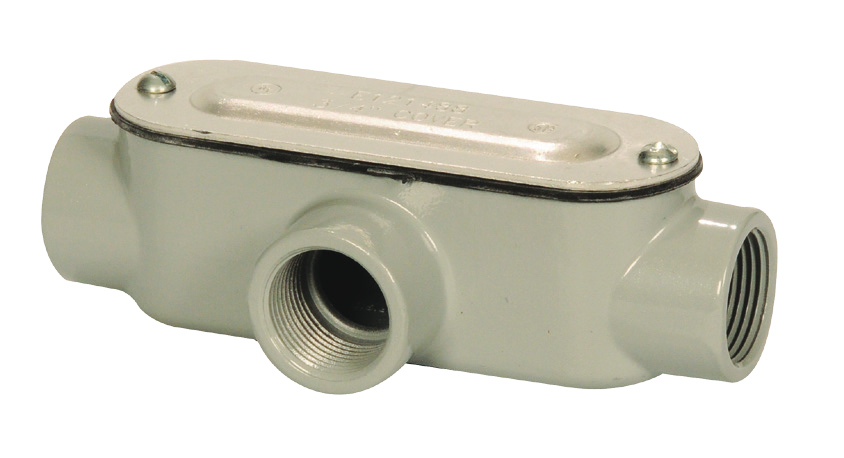

The SEPCO T8ACG is a three-inch aluminum conduit body intended for use with threaded rigid conduit and intermediate metal conduit (IMC). This product allows easy access to conductors for tasks such as pulling, splicing, and performing general maintenance. Made from a high-strength, corrosion-resistant, copper-free aluminum alloy, it promises durability in diverse environmental conditions. The flat back design enables secure mounting flush to walls. It is supplied pre-assembled with a neoprene gasket and a stamped cover, featuring tapered threaded hubs for reliable conduit connections.

• Constructed from corrosion and weather-resistant aluminum alloy.
• Includes a pre-assembled neoprene gasket and a stamped cover.
• Features tapered threaded hubs for secure connections.

Product Highlights

This conduit body is designed for reliable performance in electrical raceway systems, ensuring that maintenance tasks are efficient and safe.

Product Information

Standard Information

• Trade Size: 3 inch
• Material: Sand-cast/copper-free aluminum

Technical Specifications

• Finish: Aluminum enameled
• UL Listed: E198259
• Maximum Wire Size: 3 #4/0 AWG
• Volume: 175.00 cubic inches
