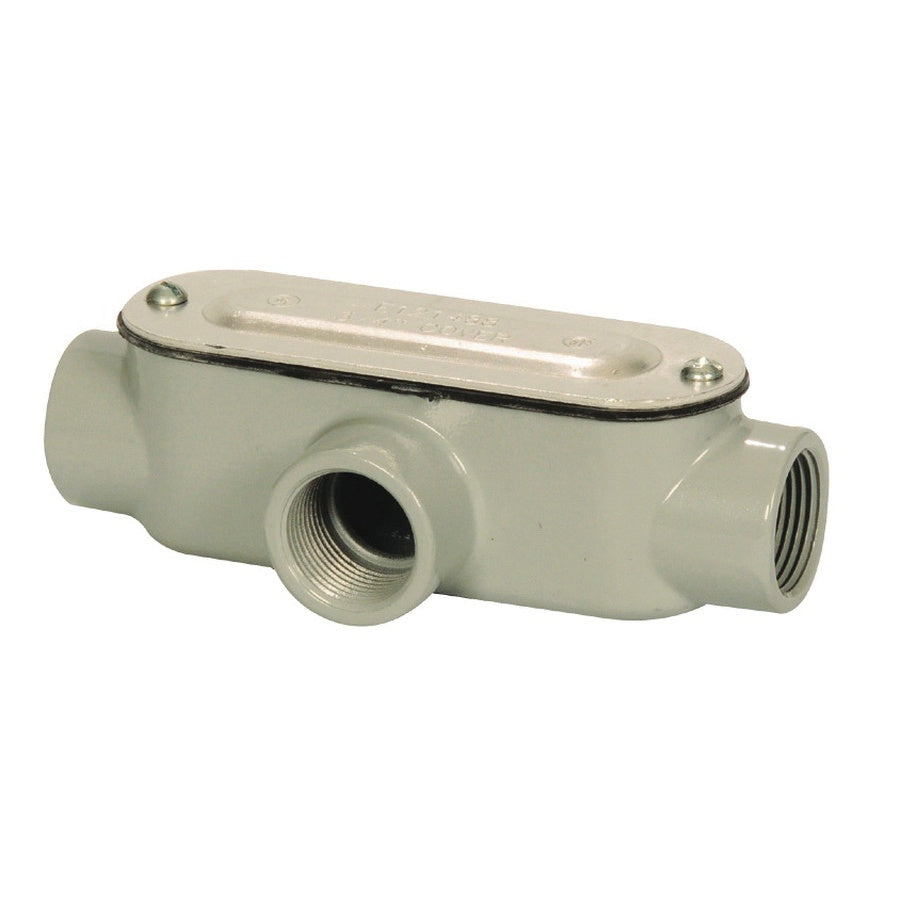

Sepco T3ACG Die Cast/Copper-Free Aluminum Type T Conduit Body With Cover And Gasket 1 Inch

Product Description

Sepco T3ACG conduit body is a one-inch trade size model designed to protect and route conduits through three tapered NPT threaded hubs arranged in a tee shape. The product features die-cast, copper-free aluminum construction, which provides high resistance to corrosion and weathering. It has a cubic capacity of twelve point two cubic inches and can accommodate three 4 AWG conductors. The design offers side access for maintenance, making it convenient for future system changes.

• Neoprene gasket and stamped cover seals out dust.
• Flat back ensures easy wall mounting.
• Access for pulling, splicing, and maintenance of conductors.

Product Highlights

This conduit body is suitable for threaded rigid conduit and IMC. The gasket and screw-on cover protect conduits from damages while allowing easy access for conductors.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer: Sepco

Technical Specifications

• Trade Size: 1 Inch
• Conduit Body Style: Type T
• Cover Type: Screw-On
• Number of Hubs: 3
• Conductor Capacity: (3) 4 AWG
• Cubic Capacity: 12.2
• Dimensions: 6.44 Inch Length x 2.63 Inch Width x 1.88 Inch Height
• Material: Die Cast/Copper-Free Aluminum
• Finish: Aluminum Enamel
• For Use With: Threaded Rigid/IMC Conduit
• Hub Placement: Tee
• Standards: UL E198259 Listed, cULus Certified
