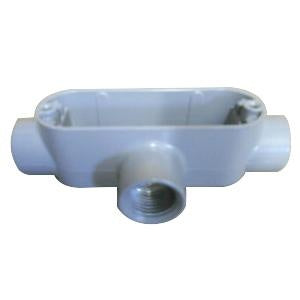

Sepco T3A Die Cast Copper Free Aluminum Type T Conduit Outlet Body 1-Inch

Product Description

Sepco T3A is a conduit outlet body made of die cast copper-free aluminum. This product features a trade size of 1 inch and is built to last under various conditions. The die-cast aluminum construction is corrosion and weather resistant. The flat back of the conduit body allows for easy mounting close to walls.

• Measures six point four four inches in length by two point six three inches in width by one point eight eight inches in height.
• Holds a cubic capacity of twelve point two for easy wire management.
• Compatible with four AWG conductors.

Product Highlights

This conduit body is ideal for use with rigid and IMC conduits. It includes tapered threaded hubs for a secure connection and allows access for conductor pulling, splicing, and maintenance. This conduit outlet body is UL and cULus listed for safety compliance.

Product Information

Standard Information

• Brand: Sepco
• Manufacturing Part Number: T3A

Technical Specifications

• Trade Size: One inch
• Conduit Body Style: Type T
• Material: Copper-free die cast aluminum
• Cubic Capacity: Twelve point two
• Dimensions: Six point four four inch length x two point six three inch width x one point eight eight inch height
• Number of Hubs: Three
• Connection Type: Threaded
• Standards: cULus Certified, UL Listed E198259
