SEPCO T3 Type T 1-Inch Conduit Body

Product Description

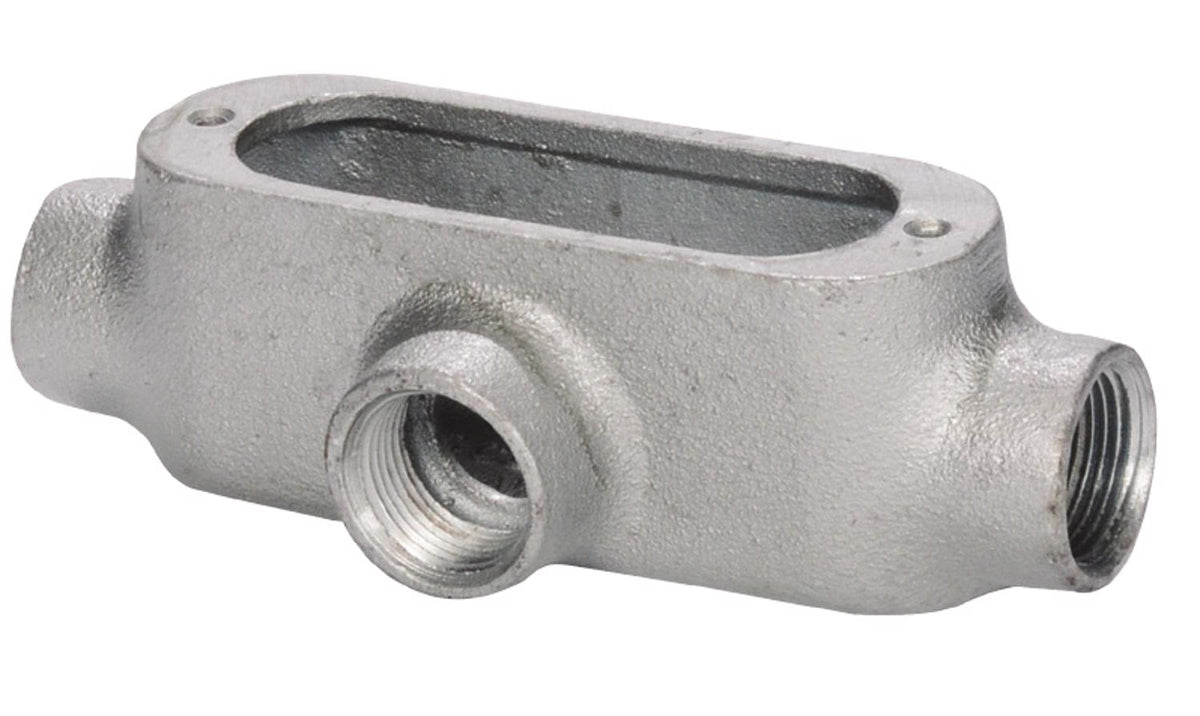

The SEPCO T3 is a Type T conduit body made from malleable iron. It allows easy access to conductors for maintenance and pulling. This conduit body is equipped with tapered threaded hubs and a flat back design to fit close to walls. It is compatible with rigid or IMC conduit, making it suitable for various installations, including concrete applications.

• Tapered threaded hubs (NPT) for secure connections.
• Flat back design for simplified mounting.
• Compatible with rigid and IMC conduits.

Product Highlights

The SEPCO T3 delivers practical solutions for accessible conduit connections in electrical installations.

Product Information

Standard Information

• Brand: SEPCO
• MPN: T3

Technical Specifications

• Conduit Type: Rigid/IMC
• Configuration: Type T
• Material: Malleable Iron
• Finish: Zinc-plated
• Size: 1 inch

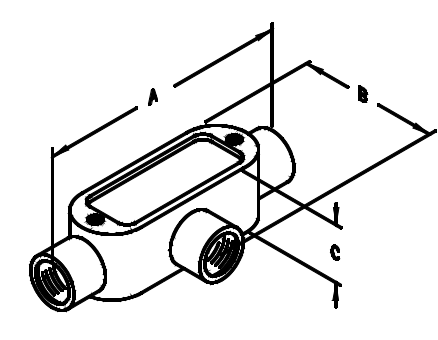

• Dim A: 7.063 inches
• Dim B: 2.625 inches
• Dim C: 1.813 inches
• Trade Size: 1
• Max Wire Size: 3 #4 AWG
• Volume (cu.in): 15.00
• Weight per 100 pcs: 195 lbs
